D-Box Type 1, 36.00x24.00x8.00, Lt Gray, Steel
MFG #DBS36248G
$977.00Â /Â E
EACH
EACH
Product Description:

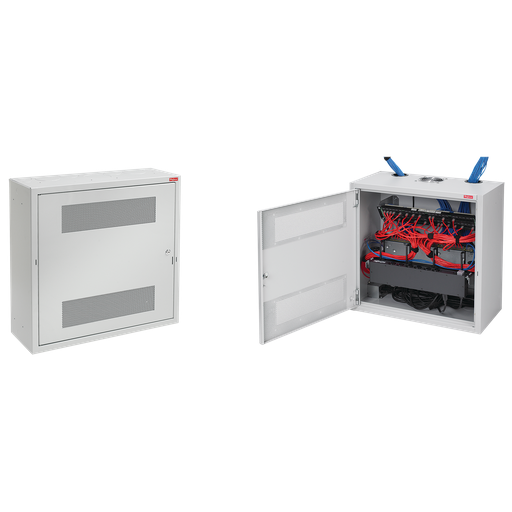

D-Box cabinets house 19-inch network equipment in public locations where low profiles are necessary. This D-Box Type 1, DBS36248G item measures 36.00x24.00x8.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFDBS36248G
UPC
783510143671
Manufacturer Part Number
DBS36248G
Manufacturer
Hoffman
D-Box Type 1, 36.00x24.00x8.00, Lt Gray, Steel
MFG #DBS36248G
Product Description:
D-Box cabinets house 19-inch network equipment in public locations where low profiles are necessary. This D-Box Type 1, DBS36248G item measures 36.00x24.00x8.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFDBS36248G
UPC
783510143671
Manufacturer Part Number
DBS36248G
Manufacturer
Hoffman
$977.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Spring-loaded, self-retained hinge pins allow door removal
- Reversible door fits flush to body with no exposed corners
- Knockouts for 4-inch fan on top and bottom of enclosure
- Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of enclosure; two 3-inch cable entry knockouts on back
- 120-degree door opening for maximum equipment access
- Multiple cable tie-down points on back of enclosure
- Quarter-turn latch with key lock
- Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy enclosure mounting
- Bosses provided for mounting accessories such as cable spools
- Patch panel 4U mounting angles rotate down for access
- Flange around door opening protects interior
- Bonding provision on door
- Ground stud on body
Specifications
| Height (H) | :Â Â | 914 |
| Width (W) | :Â Â | 610 |
| Depth (D) | :Â Â | 212 |
| Protection Rating | :Â Â | NEMA Type 1 |
| Product Family | :Â Â | D-Box |
| Color Code | :Â Â | RAL 7035 |
| Body Thickness | :Â Â | 1.52 |
| Door Thickness | :Â Â | 1.9 |
| Rack Units | :Â Â | 4 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 1 |
| IP Rating | :Â Â | IP30 |
| Weight | :Â Â | 62 |
| Height | :Â Â | 36 in |
| Width | :Â Â | 24 in |
| Depth | :Â Â | 8.34 in |
| Material | :Â Â | Steel |
| Finish | :Â Â | Steel/LtGray |
| Color | :Â Â | LtGray |
| NEMA Rating | :Â Â | 1 Indoor, electrical protection |
