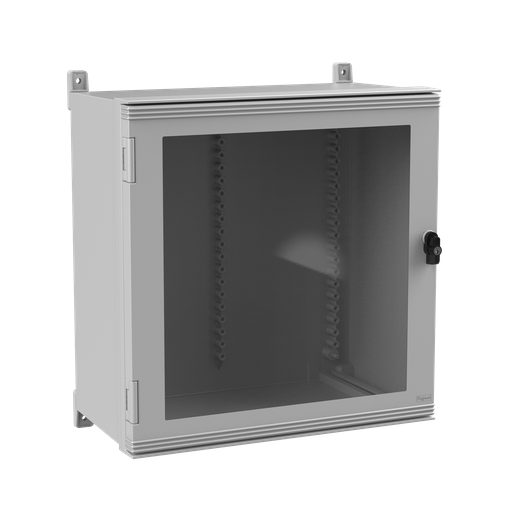

Ultrx WiFi Window Door Type 4X, 608x595x321mm, Lt Gray, Fiberglass
MFG #DU606030WP
$1,973.00Â /Â E
EACH
EACH
Product Description:
Ultrx Fiberglass WiFi Enclosures are lightweight and do not impede WiFi or WLAN signals. This Ultrx WiFi Window Door Type 4X, DU606030WP item measures 608x595x321mm with a material of Fiberglass colored Lt Gray.
HESCO Part Number
HFDU606030WP
UPC
783510149581
Manufacturer Part Number
DU606030WP
Manufacturer
Hoffman
Ultrx WiFi Window Door Type 4X, 608x595x321mm, Lt Gray, Fiberglass
MFG #DU606030WP
Product Description:
Ultrx Fiberglass WiFi Enclosures are lightweight and do not impede WiFi or WLAN signals. This Ultrx WiFi Window Door Type 4X, DU606030WP item measures 608x595x321mm with a material of Fiberglass colored Lt Gray.
HESCO Part Number
HFDU606030WP
UPC
783510149581
Manufacturer Part Number
DU606030WP
Manufacturer
Hoffman
$1,973.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures watertight and dusttight seal
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded-in drip shields are standard with each enclosure
- Door opens 180 degrees
- Replaceable breakaway hinges
- Keylocking handle standard
- Molded-in DIN bosses
- Molded bosses on door provide additional mounting provisions
- Integral mounting rails provide infinite panel adjustment front to back
- Optional data pocket is high-impact thermoplastic
- Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
- Impact-resistant polycarbonate window is permanently bonded in place
- Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
- Includes a 3/4-inch plywood panel for mounting equipment
Specifications
| Height (H) | :Â Â | 608 |
| Width (W) | :Â Â | 595 |
| Depth (D) | :Â Â | 321 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Ultrx |
| Finish | :Â Â | Smooth Matte |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 4 |
| Window Size (M x N) | :Â Â | 19.62 x 19.12 |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
| Mounting (G x H) | :Â Â | 555 x 568 |
| Door Type | :Â Â | Window |
| Internal Dimensions (A x B x C) | :Â Â | 23.94 x 23.44 x 12.64 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 43 |
| Material | :Â Â | Fiberglass |
