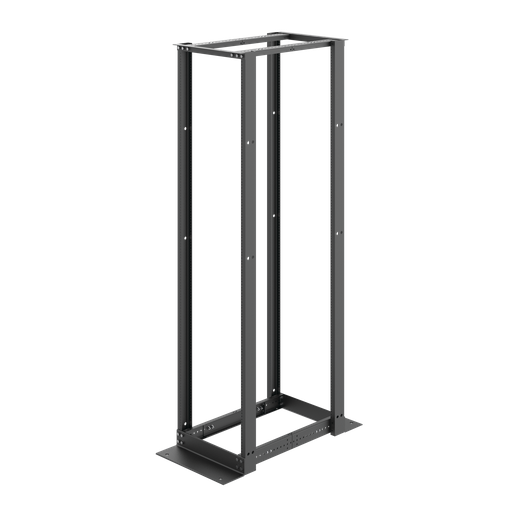

Open Frame Rack 4-Post 45U Tapped, 84.00x20.25, Black, Aluminum
MFG #E4DR19FM45U
$1,155.00Â /Â E
EACH
EACH
Product Description:
Open frame 4-post racks designed to house DataCom/TeleCom equipment with added mounting security. This 4-Post Open Frame Rack 45U Tapped, E4DR19FM45U item measures 84.00x20.25 inches with a material of Aluminum colored Black.
HESCO Part Number
HFE4DR19FM45U
UPC
783510100087
Manufacturer Part Number
E4DR19FM45U
Manufacturer
Hoffman
Open Frame Rack 4-Post 45U Tapped, 84.00x20.25, Black, Aluminum
MFG #E4DR19FM45U
Product Description:
Open frame 4-post racks designed to house DataCom/TeleCom equipment with added mounting security. This 4-Post Open Frame Rack 45U Tapped, E4DR19FM45U item measures 84.00x20.25 inches with a material of Aluminum colored Black.
HESCO Part Number
HFE4DR19FM45U
UPC
783510100087
Manufacturer Part Number
E4DR19FM45U
Manufacturer
Hoffman
$1,155.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
- EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
- Compatible with 19-in. rack accessories
- Available with nominal frame height of 6, 7 and 8 feet
- RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
- Floor mounting holes predrilled at .750-inch diameter
- 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
- For square hole model, order screws and cage nuts separately
- Can be ganged with both 2- and 4-Post Open Frame racks
- Includes complete assembly instructions
- Shipped unassembled for convenient transport to job site
- Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
- Uprights on the square-hole model are made from 12 gauge steel
- Top and bottom angles made of extruded aluminum (6063-T6 alloy)
Specifications
| Height (H) | :Â Â | 2,131 |
| Width (W) | :Â Â | 514 |
| Material | :Â Â | Aluminum |
| Finish | :Â Â | Powder Coated |
| Color | :Â Â | Jet Black |
| Color Code | :Â Â | RAL 9005 |
| Thickness (T) | :Â Â | 3.5 |
| Mounting Hole Type | :Â Â | Tapped |
| Rack Units | :Â Â | 45 |
| Nominal Frame Height (A) | :Â Â | 7 |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 68 |
- Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
- EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
- Compatible with 19-in. rack accessories
- Available with nominal frame height of 6, 7 and 8 feet
- RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
- Floor mounting holes predrilled at .750-inch diameter
- 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
- For square hole model, order screws and cage nuts separately
- Can be ganged with both 2- and 4-Post Open Frame racks
- Includes complete assembly instructions
- Shipped unassembled for convenient transport to job site
- Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
- Uprights on the square-hole model are made from 12 gauge steel
- Top and bottom angles made of extruded aluminum (6063-T6 alloy)
Specifications
Height (H) :Â Â 2,131 Width (W) :Â Â 514 Material :Â Â Aluminum Finish :Â Â Powder Coated Color :Â Â Jet Black Color Code :Â Â RAL 9005 Thickness (T) :Â Â 3.5 Mounting Hole Type :Â Â Tapped Rack Units :Â Â 45 Nominal Frame Height (A) :Â Â 7 Modification Services :Â Â Yes Weight :Â Â 68 - Data Sheet
Data Sheet - Spec-00004 - NAM-CAData Sheet - Spec-00942 - NAM-US
CertificateCertificate - E230874_V1_S1_CoC - NAM-USCertificate - CERT-00137 - NAM-USCertificate - CE-UKCA-00050_Maxrack - NAM-US
DownloadsSpec Sheet
Instruction ManualInstruction Manual - 87560701 - NAM-US
