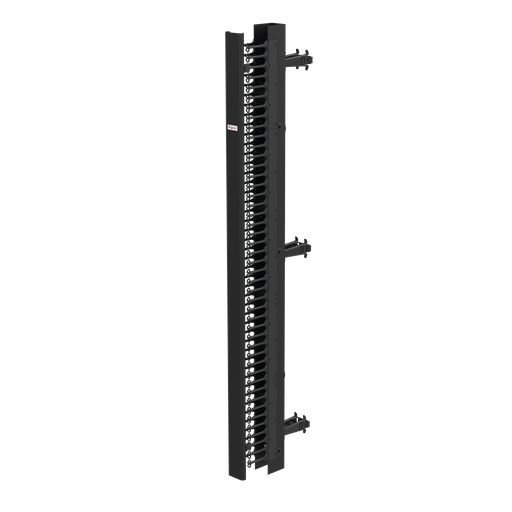

CableTek-EC Vertical Cable Manager Double, 84.00x3.50x9.00, Black, Steel
MFG #EC3D7
$684.00ย /ย E
EACH
EACH
Product Description:
CableTek-EC Vertical Cable Manager attach to open frame racks providing support and cable management. This CableTek-EC Vertical Cable Manager Double, EC3D7 item measures 84.00x3.50x9.00 inches with a material of Steel colored Black.
HESCO Part Number
HFEC3D7
UPC
783510191757
Manufacturer Part Number
EC3D7
Manufacturer
Hoffman
CableTek-EC Vertical Cable Manager Double, 84.00x3.50x9.00, Black, Steel
MFG #EC3D7
Product Description:
CableTek-EC Vertical Cable Manager attach to open frame racks providing support and cable management. This CableTek-EC Vertical Cable Manager Double, EC3D7 item measures 84.00x3.50x9.00 inches with a material of Steel colored Black.
HESCO Part Number
HFEC3D7
UPC
783510191757
Manufacturer Part Number
EC3D7
Manufacturer
Hoffman
$684.00ย /ย E
EACH
EACH
- Features
- Specifications
- Resources
- Universal mounting pattern for 2- and 4-post open-frame racks
- Easy-to-install with self-aligning, self-captivating carriage bolts for single-sided attachment
- Arrowhead supporting fingers provide easy insertion, removal and alignment of Cat 5e, 6, 6A and other cable types
- Deep cable depth provides smooth transition of cables from vertical to horizontal positions
- Large feed-through holes and pre-scored grommets provide cable feed from front to back of cable manager
- Unobstructed cable access for all rack unit locations
- Extra deep cable channel for maximum cable density has multiple cable tie-down points
- Standard front cover, with field installed snap hinges, provides cable access from right, left or neutral
- Double-sided models with supporting fingers include front central latching cover and rear snap-on cover
- Double-sided models with posts and gates support and contain cables. Five posts and gates are included; additional sets are available as accessories
- Posts snap into pre-punched holes in the back of the cable manager
- Gates snap onto posts, open from left or right as needed and swing 280ยบ for cable access. Posts can be used alone as slack spools to control long patch cords
- The single-sided cable manager can be upgraded with CableTek Post and Gates Kits
- CableTek Rear Cover is sold separately as an accessory for vertical cable managers with posts and gates, and is fully field installable; no tools needed
- Easy-to-remove front cover is multi-formed, light-weight aluminum with high-strength, black composite snap-on hinge points and hinges right, left or neutral
- Rear posts and gates on double-sided models are high-strength, black composite with all edges rounded
- Arrowhead supporting fingers are high-strength, black composite with all edges rounded
Specifications
| Width (W) | :ย ย | 3.5 |
| Product Family | :ย ย | CableTek |
| Material | :ย ย | Mild Steel |
| Finish | :ย ย | Powder Coated |
| Color | :ย ย | Jet Black |
| Color Code | :ย ย | RAL 9005 |
| Thickness (T) | :ย ย | 1.9 |
| Height (H) | :ย ย | 7 |
| Rack Units | :ย ย | 45 |
| Modification Services | :ย ย | Yes |
| Weight | :ย ย | 36 |
- Universal mounting pattern for 2- and 4-post open-frame racks
- Easy-to-install with self-aligning, self-captivating carriage bolts for single-sided attachment
- Arrowhead supporting fingers provide easy insertion, removal and alignment of Cat 5e, 6, 6A and other cable types
- Deep cable depth provides smooth transition of cables from vertical to horizontal positions
- Large feed-through holes and pre-scored grommets provide cable feed from front to back of cable manager
- Unobstructed cable access for all rack unit locations
- Extra deep cable channel for maximum cable density has multiple cable tie-down points
- Standard front cover, with field installed snap hinges, provides cable access from right, left or neutral
- Double-sided models with supporting fingers include front central latching cover and rear snap-on cover
- Double-sided models with posts and gates support and contain cables. Five posts and gates are included; additional sets are available as accessories
- Posts snap into pre-punched holes in the back of the cable manager
- Gates snap onto posts, open from left or right as needed and swing 280ยบ for cable access. Posts can be used alone as slack spools to control long patch cords
- The single-sided cable manager can be upgraded with CableTek Post and Gates Kits
- CableTek Rear Cover is sold separately as an accessory for vertical cable managers with posts and gates, and is fully field installable; no tools needed
- Easy-to-remove front cover is multi-formed, light-weight aluminum with high-strength, black composite snap-on hinge points and hinges right, left or neutral
- Rear posts and gates on double-sided models are high-strength, black composite with all edges rounded
- Arrowhead supporting fingers are high-strength, black composite with all edges rounded
Specifications
Width (W) :ย ย 3.5 Product Family :ย ย CableTek Material :ย ย Mild Steel Finish :ย ย Powder Coated Color :ย ย Jet Black Color Code :ย ย RAL 9005 Thickness (T) :ย ย 1.9 Height (H) :ย ย 7 Rack Units :ย ย 45 Modification Services :ย ย Yes Weight :ย ย 36 - Instruction Manual
Instruction Manual - 87400586 - NAM-USInstruction Manual - 89093609 - NAM-USInstruction Manual - 87953922 - NAM-US
Data SheetData Sheet - Spec-00559 - NAM-CA
DownloadsSpec Sheet
