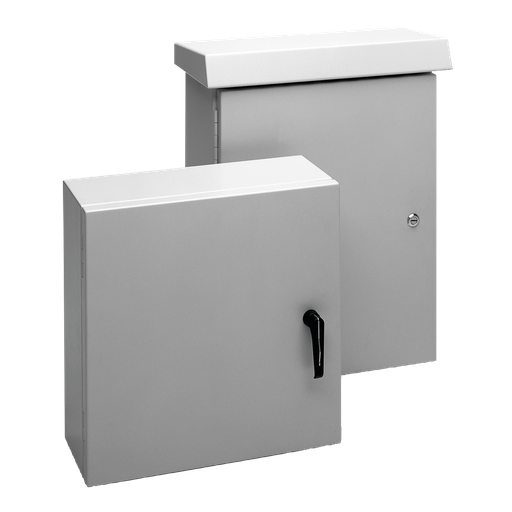

ComLine Enclosure Hidden Hinge Type 4X, 500x500x200mm, Gray, Aluminum
MFG #ECL505020
$2,460.00Â /Â E
EACH
EACH
Product Description:
ComLine wall-mount enclosures protect electrical components in extreme outdoor environments. This ComLine Enclosure Hidden Hinge Type 4X, ECL505020 item measures 500x500x200mm with a material of Aluminum colored Gray.
HESCO Part Number
HFECL505020
UPC
783510371098
Manufacturer Part Number
ECL505020
Manufacturer
Hoffman
ComLine Enclosure Hidden Hinge Type 4X, 500x500x200mm, Gray, Aluminum
MFG #ECL505020
Product Description:
ComLine wall-mount enclosures protect electrical components in extreme outdoor environments. This ComLine Enclosure Hidden Hinge Type 4X, ECL505020 item measures 500x500x200mm with a material of Aluminum colored Gray.
HESCO Part Number
HFECL505020
UPC
783510371098
Manufacturer Part Number
ECL505020
Manufacturer
Hoffman
$2,460.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bonding provision on door; ground stud on body
- Seams continuously welded and ground smooth for a finished appearance
- Foam-in-place seamless gasket for superior protection against dust and liquid ingress
- 1- or 3-point latching (screwdriver slot), depending on door size
- Optional door stop/wind latch holds door in place during service
- Two door/hinge styles available
- Easily removable door with hidden hinge and retaineing hinge pin
Specifications
| Height (H) | :Â Â | 500 |
| Width (W) | :Â Â | 500 |
| Depth (D) | :Â Â | 200 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | ComLine |
| Color Code | :Â Â | RAL 7035 |
| Body Thickness | :Â Â | 2 |
| Door Thickness | :Â Â | 2 |
| Latch Points | :Â Â | 1 |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
| Package Weight | :Â Â | 17 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 25 |
| Sub Brand | :Â Â | ComLine |
| Material | :Â Â | Aluminum |
| Finish | :Â Â | Gray |
| Color | :Â Â | Gray |
- Bonding provision on door; ground stud on body
- Seams continuously welded and ground smooth for a finished appearance
- Foam-in-place seamless gasket for superior protection against dust and liquid ingress
- 1- or 3-point latching (screwdriver slot), depending on door size
- Optional door stop/wind latch holds door in place during service
- Two door/hinge styles available
- Easily removable door with hidden hinge and retaineing hinge pin
Specifications
Height (H) :Â Â 500 Width (W) :Â Â 500 Depth (D) :Â Â 200 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â ComLine Color Code :Â Â RAL 7035 Body Thickness :Â Â 2 Door Thickness :Â Â 2 Latch Points :Â Â 1 NEMA Rating :Â Â 4X Watertight, corrosion-resistant Package Weight :Â Â 17 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 25 Sub Brand :Â Â ComLine Material :Â Â Aluminum Finish :Â Â Gray Color :Â Â Gray - Certificate
Certificate - CERT-00134 - NAM-USCertificate - CERT-00245 - NAM-USCertificate - CE-UKCA-00039_Comline-Protek - NAM-US
Instruction ManualInstruction Manual - 87555254 - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - Spec-00454 - NAM-CA
