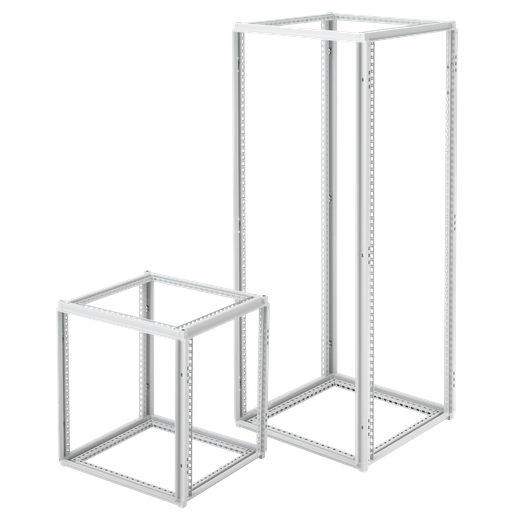

EMC Frames, 1400x600x600
MFG #PF1466HF
$2,180.00Â /Â E
EACH
EACH
Product Description:
The ProLine frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to maintain a solid square structure - a solid foundation for the electrical enclosure. EMC frames are plated to provide corrosion resistance while also maintaining metal-to-metal contact with the EMC covers.
HESCO Part Number
HFPF1466HF
UPC
783510100490
Manufacturer Part Number
PF1466HF
Manufacturer
Hoffman
EMC Frames, 1400x600x600
MFG #PF1466HF
Product Description:
The ProLine frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to maintain a solid square structure - a solid foundation for the electrical enclosure. EMC frames are plated to provide corrosion resistance while also maintaining metal-to-metal contact with the EMC covers.
HESCO Part Number
HFPF1466HF
UPC
783510100490
Manufacturer Part Number
PF1466HF
Manufacturer
Hoffman
$2,180.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- Plated finish for corrosion resistance and effective cover grounding
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
Specifications
| Height (H) | :Â Â | 1,400 |
| Width (W) | :Â Â | 600 |
| Depth (D) | :Â Â | 600 |
| Product Family | :Â Â | ProLine |
| Max Subpanel Size | :Â Â | 50.59 x 20.87 |
| Max Rack Mounting Space | :Â Â | 28 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| Weight | :Â Â | 93.5 |
| Finish | :Â Â | Plated |
| Thickness (T) | :Â Â | 2.66 |
| Works With | :Â Â | NEMA |
| Sub Brand | :Â Â | ProLine |
| Material | :Â Â | Steel |
| Size | :Â Â | 1400x600x600mm |
