Hoffman

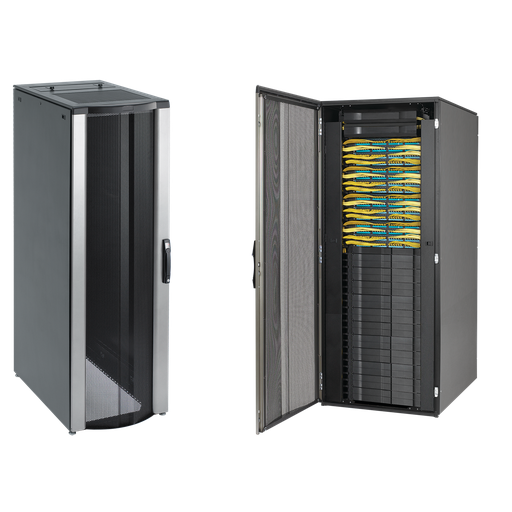

ProLine ConnecTek Patch Cabinet with Sides, 2000x800x1000mm, Black, Steel
MFG #PNC20810B
$5,041.00Â /Â E
EACH
EACH
Product Description:
Proline Patch Cabinets house networking equipment, patch panels, patch cords and high-density cables. This ProLine ConnecTek Patch Cabinet with Sides, PNC20810B item measures 2000x800x1000mm with a material of Steel colored Black.
HESCO Part Number
HFPNC20810B
UPC
783510160661
Manufacturer Part Number
PNC20810B
Manufacturer
Hoffman
Hoffman
ProLine ConnecTek Patch Cabinet with Sides, 2000x800x1000mm, Black, Steel
MFG #PNC20810B
Product Description:
Proline Patch Cabinets house networking equipment, patch panels, patch cords and high-density cables. This ProLine ConnecTek Patch Cabinet with Sides, PNC20810B item measures 2000x800x1000mm with a material of Steel colored Black.
HESCO Part Number
HFPNC20810B
UPC
783510160661
Manufacturer Part Number
PNC20810B
Manufacturer
Hoffman
$5,041.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Aesthetically pleasing front door offers optimal airflow and durability
- Fully perforated top, front door and rear doors allow maximum air movement around cables, patch panels and other network equipment
- Front and rear open cable managers provide ability to support and route cable
- Side-less models allow for easy installation in ganging applications
- Common profiles allow ganging of server and networking cabinets
- Top gland plate allows easy routing of cable, pre-terminated cables and patch panels
- Three-point locking swing handle allows for easy but controlled access; two keys included
Specifications
| Height (H) | :Â Â | 1,991 |
| Width (W) | :Â Â | 808 |
| Depth (D) | :Â Â | 999 |
| Product Family | :Â Â | ProLine |
| Color Code | :Â Â | RAL 9005 |
| Thickness (T) | :Â Â | 1.52 |
| Rack Units | :Â Â | 42 |
| Side Covers Included | :Â Â | Yes |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 440 |
| Sub Brand | :Â Â | ProLine |
| Height | :Â Â | 78.37 in |
| Width | :Â Â | 31.8 in |
| Depth | :Â Â | 39.34 in |
| Material | :Â Â | Steel |
| Finish | :Â Â | Black |
| Color | :Â Â | Black |
Downloads
Spec Sheet
Data Sheet
Data Sheet - Spec-00160 - NAM-CA
Data Sheet - Spec-00451 - NAM-US
Data Sheet - Spec-00927 - NAM-US
Certificate
Certificate - CE-UKCA-00051_Proline-PC - NAM-US
Instruction Manual
Instruction Manual - 35320001 - NAM-US
Spec SheetData Sheet
Data Sheet - Spec-00160 - NAM-CAData Sheet - Spec-00451 - NAM-USData Sheet - Spec-00927 - NAM-USCertificate
Certificate - CE-UKCA-00051_Proline-PC - NAM-USInstruction Manual
Instruction Manual - 35320001 - NAM-US- Aesthetically pleasing front door offers optimal airflow and durability
- Fully perforated top, front door and rear doors allow maximum air movement around cables, patch panels and other network equipment
- Front and rear open cable managers provide ability to support and route cable
- Side-less models allow for easy installation in ganging applications
- Common profiles allow ganging of server and networking cabinets
- Top gland plate allows easy routing of cable, pre-terminated cables and patch panels
- Three-point locking swing handle allows for easy but controlled access; two keys included
Specifications
Height (H) :Â Â 1,991 Width (W) :Â Â 808 Depth (D) :Â Â 999 Product Family :Â Â ProLine Color Code :Â Â RAL 9005 Thickness (T) :Â Â 1.52 Rack Units :Â Â 42 Side Covers Included :Â Â Yes Modification Services :Â Â Yes Weight :Â Â 440 Sub Brand :Â Â ProLine Height :Â Â 78.37 in Width :Â Â 31.8 in Depth :Â Â 39.34 in Material :Â Â Steel Finish :Â Â Black Color :Â Â Black - DownloadsSpec Sheet
Data SheetData Sheet - Spec-00160 - NAM-CAData Sheet - Spec-00451 - NAM-USData Sheet - Spec-00927 - NAM-US
CertificateCertificate - CE-UKCA-00051_Proline-PC - NAM-US
Instruction ManualInstruction Manual - 35320001 - NAM-US
