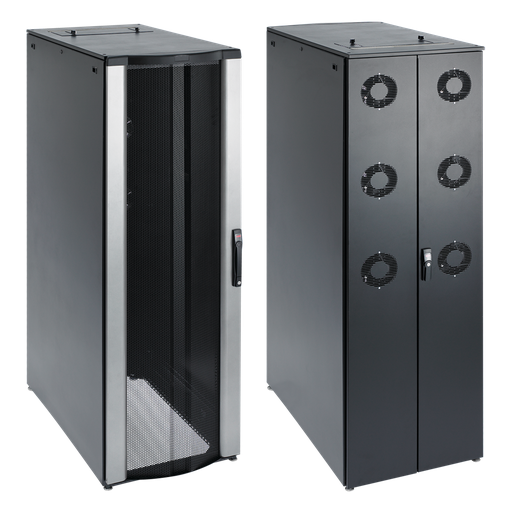

ProLine FloTek HCA Server Cabinet with Sides, 2000x600x1100mm, Black, Steel
MFG #PSCHCA20611B
$6,017.00Â /Â E
EACH
EACH
Product Description:
ProLine FloTek HCA Server Cabinets promote airflow through cabinet in hot or cold aisle application. This ProLine FloTek HCA Server Cabinet with Sides, PSCHCA20611B item measures 2000x600x1100mm with a material of Steel colored Black.
HESCO Part Number
HFPSCHCA20611B
UPC
783510155957
Manufacturer Part Number
PSCHCA20611B
Manufacturer
Hoffman
ProLine FloTek HCA Server Cabinet with Sides, 2000x600x1100mm, Black, Steel
MFG #PSCHCA20611B
Product Description:
ProLine FloTek HCA Server Cabinets promote airflow through cabinet in hot or cold aisle application. This ProLine FloTek HCA Server Cabinet with Sides, PSCHCA20611B item measures 2000x600x1100mm with a material of Steel colored Black.
HESCO Part Number
HFPSCHCA20611B
UPC
783510155957
Manufacturer Part Number
PSCHCA20611B
Manufacturer
Hoffman
$6,017.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Fully perforated front door offers maximum airflow from cold aisle and conforms to server manufacturer open space requirements
- Rigid front door made of aluminum extrusions and formed perforated steel offers highly attractive appearance and durability
- Six 6-inch fans with integral finger guards in the rear doors pull cold-aisle air through cabinet and exhaust it to hot aisle
- Fans on each door can be independently powered to provide redundant cooling
- Solid top helps direct airflow across equipment
- Models without sides fit together quickly for easy installation in ganged applications
- Three-point locking pushbutton swing handle on front door provides easy but controlled access; two keys included
- Rear doors are split for easy access and include 3-point, low-profile, locking swing handle
- Two sets of 19-inch square-hole rack angles support both front and rear of equipment
- Rack angles are infinitely adjustable from front to rear for positioning flexibility
- Large gland plate in top allows easy routing of cable, pre-terminated cables and patch panels
- Open bottom with integral bolt-down brackets
Specifications
| Height (H) | :Â Â | 1,991 |
| Width (W) | :Â Â | 608 |
| Depth (D) | :Â Â | 1,099 |
| Product Family | :Â Â | ProLine |
| Color Code | :Â Â | RAL 9005 |
| Thickness (T) | :Â Â | 1.52 |
| Rack Units | :Â Â | 42 |
| Side Covers Included | :Â Â | Yes |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 370 |
| Sub Brand | :Â Â | ProLine |
| Material | :Â Â | Steel |
| Finish | :Â Â | Black |
| Color | :Â Â | Black |
Data Sheet
Data Sheet - Spec-00159 - NAM-CA
Data Sheet - Spec-00451 - NAM-US
Data Sheet - Spec-00923 - NAM-US
Downloads
Spec Sheet
Certificate
Certificate - CE-UKCA-00051_Proline-PC - NAM-US
Instruction Manual
Instruction Manual - 35320001 - NAM-US
