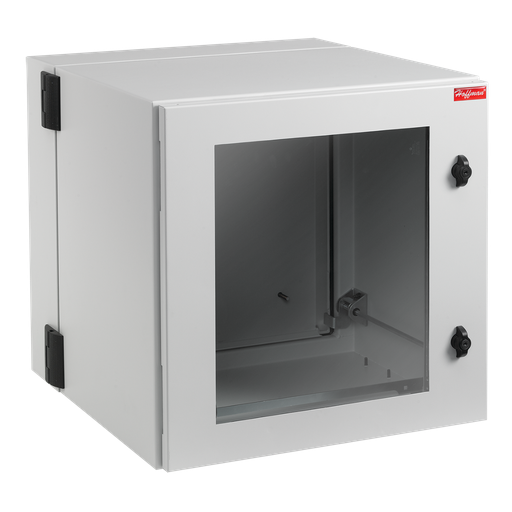

ProTek Double-Hinge Window Type 4 12, 36.30x23.62x24.02, Lt Gray, Steel
MFG #PTHW362424G2
$2,475.00Â /Â E
EACH
EACH
Product Description:
ProTek Double-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Double-Hinge Window Type 4 12, PTHW362424G2 item measures 36.30x23.62x24.02in. with a material of Steel colored Lt Gray.
HESCO Part Number
HFPTHW362424G2
UPC
783510236427
Manufacturer Part Number
PTHW362424G2
Manufacturer
Hoffman
ProTek Double-Hinge Window Type 4 12, 36.30x23.62x24.02, Lt Gray, Steel
MFG #PTHW362424G2
Product Description:
ProTek Double-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Double-Hinge Window Type 4 12, PTHW362424G2 item measures 36.30x23.62x24.02in. with a material of Steel colored Lt Gray.
HESCO Part Number
HFPTHW362424G2
UPC
783510236427
Manufacturer Part Number
PTHW362424G2
Manufacturer
Hoffman
$2,475.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
| Height (H) | :Â Â | 922 |
| Width (W) | :Â Â | 600 |
| Depth (D) | :Â Â | 610 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | ProTek |
| Color Code | :Â Â | RAL 7035 |
| Body Thickness | :Â Â | 1.9 |
| Door Thickness | :Â Â | 1.52 |
| Rack Units | :Â Â | 19 |
| Additional Rack Angles | :Â Â | PTRA36T or PTRA36S |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| Weight | :Â Â | 138 |
| Sub Brand | :Â Â | ProTek |
| Height | :Â Â | 36.3 in |
| Width | :Â Â | 23.62 in |
| Depth | :Â Â | 24.02 in |
| Material | :Â Â | Steel |
| Finish | :Â Â | Lt Gray |
| Color | :Â Â | Lt Gray |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Height (H) :Â Â 922 Width (W) :Â Â 600 Depth (D) :Â Â 610 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â ProTek Color Code :Â Â RAL 7035 Body Thickness :Â Â 1.9 Door Thickness :Â Â 1.52 Rack Units :Â Â 19 Additional Rack Angles :Â Â PTRA36T or PTRA36S Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP55 Weight :Â Â 138 Sub Brand :Â Â ProTek Height :Â Â 36.3 in Width :Â Â 23.62 in Depth :Â Â 24.02 in Material :Â Â Steel Finish :Â Â Lt Gray Color :Â Â Lt Gray NEMA Rating :Â Â 12 Indoor, dust-resistant - Certificate
Certificate - CERT-00145 - NAM-USCertificate - CE-UKCA-00100_Protek-12 - NAM-US
Instruction ManualInstruction Manual - 89074346 - NAM-USInstruction Manual - User-00031 - NAM-US
Data SheetData Sheet - Spec-00713 - NAM-CAData Sheet - Spec-01408 - NAM-CA
DownloadsSpec Sheet
