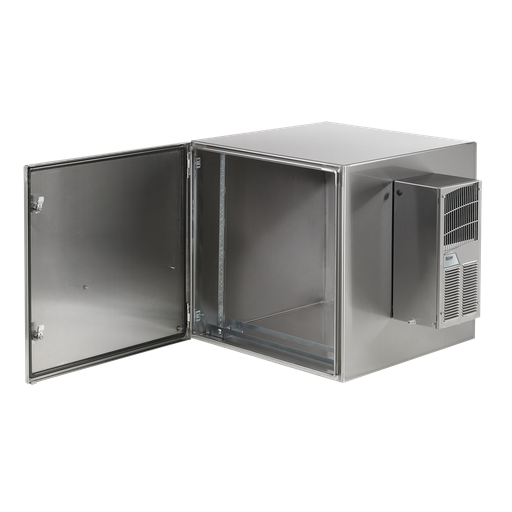

ProTek Single-Door Solid AC Type 4 4X 12, 24.09x23.62x24.02, Brushed, SS304
MFG #PTRS242424XA
$9,388.00Â /Â E
EACH
EACH
Product Description:
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Solid AC Type 4 4X 12, PTRS242424XA item measures 24.09x23.62x24.02in. with a material of SS304 finish Brushed.
HESCO Part Number
HFPTRS242424XA
UPC
783510240578
Manufacturer Part Number
PTRS242424XA
Manufacturer
Hoffman
ProTek Single-Door Solid AC Type 4 4X 12, 24.09x23.62x24.02, Brushed, SS304
MFG #PTRS242424XA
Product Description:
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Solid AC Type 4 4X 12, PTRS242424XA item measures 24.09x23.62x24.02in. with a material of SS304 finish Brushed.
HESCO Part Number
HFPTRS242424XA
UPC
783510240578
Manufacturer Part Number
PTRS242424XA
Manufacturer
Hoffman
$9,388.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
| Height (H) | :Â Â | 612 |
| Width (W) | :Â Â | 600 |
| Depth (D) | :Â Â | 610 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | ProTek |
| Finish | :Â Â | Brushed #3 |
| Thickness (T) | :Â Â | 1.9 |
| Rack Units | :Â Â | 12 |
| Additional Rack Angles | :Â Â | PTRA24T or PTRA24S |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 156 |
| Sub Brand | :Â Â | ProTek |
| Material | :Â Â | Stainless Steel |
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Height (H) :Â Â 612 Width (W) :Â Â 600 Depth (D) :Â Â 610 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â ProTek Finish :Â Â Brushed #3 Thickness (T) :Â Â 1.9 Rack Units :Â Â 12 Additional Rack Angles :Â Â PTRA24T or PTRA24S Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 NEMA Rating :Â Â 12 Indoor, dust-resistant Weight :Â Â 156 Sub Brand :Â Â ProTek Material :Â Â Stainless Steel - Data Sheet
Data Sheet - Spec-00712 - NAM-CA
CertificateCertificate - CERT-00147 - NAM-USCertificate - CE-UKCA-00039_Comline-Protek - NAM-US
Instruction ManualInstruction Manual - User-00031 - NAM-USInstruction Manual - 89074346 - NAM-US
DownloadsSpec Sheet
