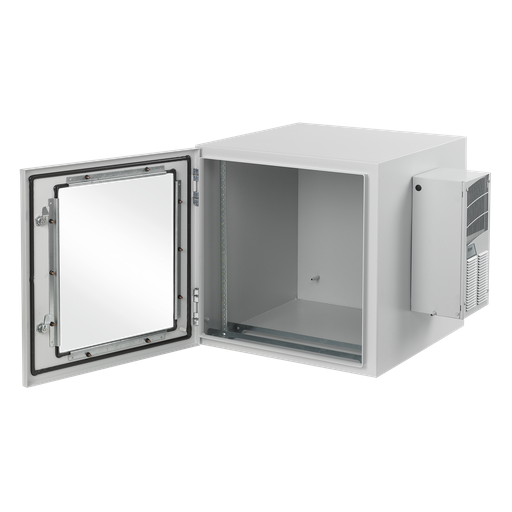

Hoffman
ProTek Single-Door Window AC Type 4 12, 24.09x23.62x2.40, Lt Gray, Steel
MFG #PTRW242424G2A
$6,458.00Â /Â E
EACH
EACH
Product Description:
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Window AC Type 4 12, PTRW242424G2A item measures 24.09x23.62x2.40in. with a material of Steel colored Lt Gray.
HESCO Part Number
HFPTRW242424G2A
UPC
783510236069
Manufacturer Part Number
PTRW242424G2A
Manufacturer
Hoffman
Hoffman
ProTek Single-Door Window AC Type 4 12, 24.09x23.62x2.40, Lt Gray, Steel
MFG #PTRW242424G2A
Product Description:
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Window AC Type 4 12, PTRW242424G2A item measures 24.09x23.62x2.40in. with a material of Steel colored Lt Gray.
HESCO Part Number
HFPTRW242424G2A
UPC
783510236069
Manufacturer Part Number
PTRW242424G2A
Manufacturer
Hoffman
$6,458.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
| Height (H) | :Â Â | 612 |
| Width (W) | :Â Â | 600 |
| Depth (D) | :Â Â | 61 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | ProTek |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 1.9 |
| Rack Units | :Â Â | 12 |
| Additional Rack Angles | :Â Â | PTRA24T or PTRA24S |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| Weight | :Â Â | 120 |
| Sub Brand | :Â Â | ProTek |
| Height | :Â Â | 24.09 in |
| Width | :Â Â | 23.62 in |
| Depth | :Â Â | 2.4 in |
| Material | :Â Â | Steel |
| Finish | :Â Â | Lt Gray |
| Color | :Â Â | Lt Gray |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Height (H) :Â Â 612 Width (W) :Â Â 600 Depth (D) :Â Â 61 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â ProTek Color Code :Â Â RAL 7035 Thickness (T) :Â Â 1.9 Rack Units :Â Â 12 Additional Rack Angles :Â Â PTRA24T or PTRA24S Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP55 Weight :Â Â 120 Sub Brand :Â Â ProTek Height :Â Â 24.09 in Width :Â Â 23.62 in Depth :Â Â 2.4 in Material :Â Â Steel Finish :Â Â Lt Gray Color :Â Â Lt Gray NEMA Rating :Â Â 12 Indoor, dust-resistant - Certificate
Certificate - CERT-00147 - NAM-USCertificate - CE-UKCA-00025_Enclosure-Wallmount-12 - NAM-US
Instruction ManualInstruction Manual - User-00031 - NAM-USInstruction Manual - 89074346 - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - Spec-00712 - NAM-CA
