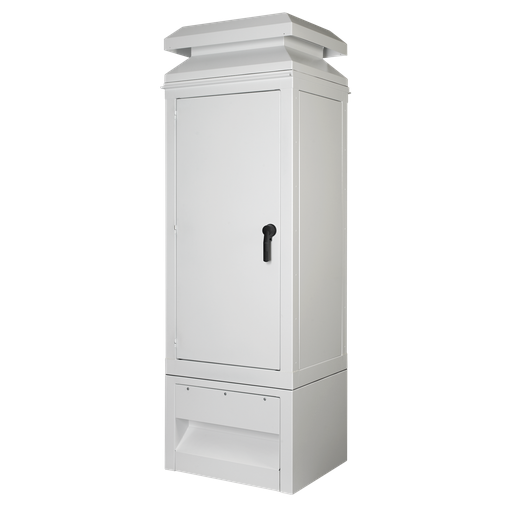

WeatherFlo HD Enclosures 1-Door Type 3R, 74.14x68.56x30.00, White, Aluminum
MFG #WFHD3E726830
$4,693.00Â /Â E
EACH
EACH
Product Description:
WeatherFlo HD Enclosures are designed to protect and cool 100-500 HP variable frequency drives. This WeatherFlo HD Enclosures 1-Door Type 3R, WFHD3E726830 item measures 74.14x68.56x30.00 inch with a material of Aluminum colored White.
HESCO Part Number
HFWFHD3E726830
UPC
783510199159
Manufacturer Part Number
WFHD3E726830
Manufacturer
Hoffman
WeatherFlo HD Enclosures 1-Door Type 3R, 74.14x68.56x30.00, White, Aluminum
MFG #WFHD3E726830
Product Description:
WeatherFlo HD Enclosures are designed to protect and cool 100-500 HP variable frequency drives. This WeatherFlo HD Enclosures 1-Door Type 3R, WFHD3E726830 item measures 74.14x68.56x30.00 inch with a material of Aluminum colored White.
HESCO Part Number
HFWFHD3E726830
UPC
783510199159
Manufacturer Part Number
WFHD3E726830
Manufacturer
Hoffman
$4,693.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Optional impeller packages provide 840 actual CFM per impeller
- Easy-to-install back panel with flexible installation methods
- Painted white polyester powder finish with low solar absorption
- Selectable bases and tops, designed to meet your specific needs
- Gangable enclosures can be joined to one another
- Easy-to-change filter (not included)
- Frames, bases and gland plates constructed of .125-in. aluminum
- Tops and fan housing constructed of .080-in. aluminum
- Sides and standard rear cover constructed of .100-in. aluminum
- Gasketed door, top and base
- Panels and heavy-duty rear cover constructed of 12 gauge mild steel
- Three-point latches operated by patented padlocking handle
- Grounding provisions on door and body
Specifications
| Height (H) | :Â Â | 1,883 |
| Width (W) | :Â Â | 1,741 |
| Depth (D) | :Â Â | 762 |
| Protection Rating | :Â Â | NEMA Type 3R |
| Product Family | :Â Â | WeatherFlo |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 9003 |
| Thickness (T) | :Â Â | 3.2 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP32 |
| NEMA Rating | :Â Â | 3R Weather-resistant, except dust |
| Weight | :Â Â | 249 |
| Sub Brand | :Â Â | WeatherFlo HD |
| Material | :Â Â | Aluminum |
| Size | :Â Â | 74.14x68.56x30.00 in |
| Color | :Â Â | White |
- Optional impeller packages provide 840 actual CFM per impeller
- Easy-to-install back panel with flexible installation methods
- Painted white polyester powder finish with low solar absorption
- Selectable bases and tops, designed to meet your specific needs
- Gangable enclosures can be joined to one another
- Easy-to-change filter (not included)
- Frames, bases and gland plates constructed of .125-in. aluminum
- Tops and fan housing constructed of .080-in. aluminum
- Sides and standard rear cover constructed of .100-in. aluminum
- Gasketed door, top and base
- Panels and heavy-duty rear cover constructed of 12 gauge mild steel
- Three-point latches operated by patented padlocking handle
- Grounding provisions on door and body
Specifications
Height (H) :Â Â 1,883 Width (W) :Â Â 1,741 Depth (D) :Â Â 762 Protection Rating :Â Â NEMA Type 3R Product Family :Â Â WeatherFlo Finish :Â Â Powder Coated Color Code :Â Â RAL 9003 Thickness (T) :Â Â 3.2 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP32 NEMA Rating :Â Â 3R Weather-resistant, except dust Weight :Â Â 249 Sub Brand :Â Â WeatherFlo HD Material :Â Â Aluminum Size :Â Â 74.14x68.56x30.00 in Color :Â Â White - Downloads
Spec Sheet
CertificateCertificate - CERT-00069 - NAM-USCertificate - CE-UKCA-00007_WeatherFlo - NAM-US
Instruction ManualInstruction Manual - 89069375 - NAM-USInstruction Manual - 35320001 - NAM-US
Data SheetData Sheet - Spec-00569 - NAM-CA
