Hubbell Wiring Device

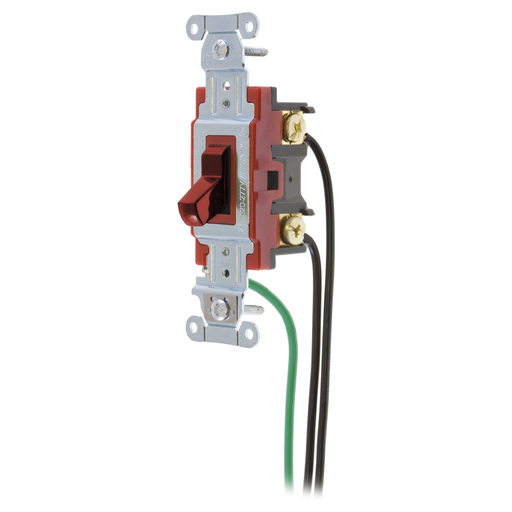

Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Red
MFG #1223PWR
$19.50 / E
EACH
EACH
Product Description:
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Red
HESCO Part Number
HUB1223PWR
UPC
783585188263
Manufacturer Part Number
1223PWR
Manufacturer
Hubbell Wiring Device
Hubbell Wiring Device
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Red
MFG #1223PWR
Product Description:
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Red
HESCO Part Number
HUB1223PWR
UPC
783585188263
Manufacturer Part Number
1223PWR
Manufacturer
Hubbell Wiring Device
$19.50 / E
EACH
EACH
- Features
- Specifications
- Resources
- Steel, zinc plated bridge is corrosion resistant
- Color Coded by Amperage makes inspection easy even when installed
- Strip gauge for accurate wiring
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 4.18 in x 1.3 in x 1.83 in |
| Each - Width | : | 1.910 in |
| Height | : | 1.83 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.18 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Action | : | SPDT |
| Amperage Rating | : | 20 A |
| Application | : | 8" #12 AWG THHN |
| Color | : | Red |
| Number of Poles | : | Single Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.18 in x 1.3 in x 1.83 in |
| Standard | : | UL Listed |
| Type | : | Toggle |
| Voltage Rating | : | 120-277 VAC |
| Width | : | 1.3 in |
| Connectivity | : | Pre-Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Single Pole |
| Style | : | Three Way |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, CAT#1223R W/8" LEADS |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A16A250 |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 5.625x18.375x14.625 (in) |
| Carton - Gross Weight per Pack | : | 10.000 lb. |
| Carton - Number of Sub Packs | : | 50 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585188263 |
| Carton - Total Units | : | 50 EA |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | No |
- Steel, zinc plated bridge is corrosion resistant
- Color Coded by Amperage makes inspection easy even when installed
- Strip gauge for accurate wiring
Specifications
Country of Origin : CN Dimensions : 4.18 in x 1.3 in x 1.83 in Each - Width : 1.910 in Height : 1.83 in Industry Standard(s) : UL Listed Length : 4.18 in Temperature Rise - Max. : 30°C maximum at rated current Action : SPDT Amperage Rating : 20 A Application : 8" #12 AWG THHN Color : Red Number of Poles : Single Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.18 in x 1.3 in x 1.83 in Standard : UL Listed Type : Toggle Voltage Rating : 120-277 VAC Width : 1.3 in Connectivity : Pre-Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Single Pole Style : Three Way Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, CAT#1223R W/8" LEADS Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : A16A250 Base Unit of Measure : EA BOX SIZE : 5.625x18.375x14.625 (in) Carton - Gross Weight per Pack : 10.000 lb. Carton - Number of Sub Packs : 50 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585188263 Carton - Total Units : 50 EA Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : No - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset Reference
PWR AutoCAD Drawing
