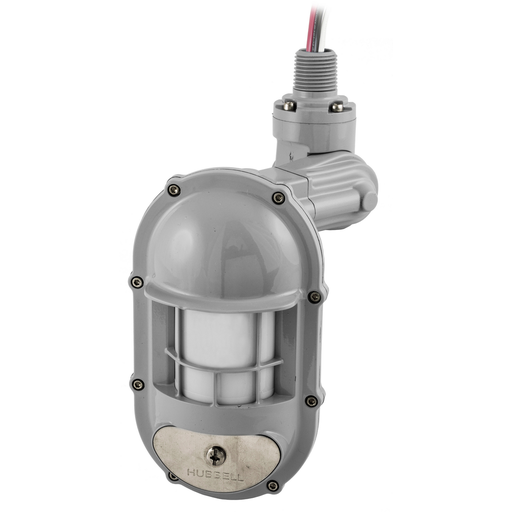

Switches and Lighting Control, Occupancy Sensor, Hazardous Location, Passive Infrared, Wall Mount, 1600 Square Feet, With Photocell and Relay
MFG #AHP1600WRP
$336.00 / E
EACH
EACH
Product Description:
Switches and Lighting Control, Occupancy Sensor, Hazardous Location, Passive Infrared, Wall Mount, 1600 Square Feet, With Photocell and Relay
HESCO Part Number
HUBAHP1600WRP
UPC
783585256122
Manufacturer Part Number
AHP1600WRP
Manufacturer
Hubbell Wiring Device
Switches and Lighting Control, Occupancy Sensor, Hazardous Location, Passive Infrared, Wall Mount, 1600 Square Feet, With Photocell and Relay
MFG #AHP1600WRP
Product Description:
Switches and Lighting Control, Occupancy Sensor, Hazardous Location, Passive Infrared, Wall Mount, 1600 Square Feet, With Photocell and Relay
HESCO Part Number
HUBAHP1600WRP
UPC
783585256122
Manufacturer Part Number
AHP1600WRP
Manufacturer
Hubbell Wiring Device
$336.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- IP66, NEMA 4X, and outdoor use rated
- Rated for -40°F to 149°F operating temperatures
- Rugged Valox enclosure with stainless steel hardware
- Integrated lens protection
- Advanced digital PIR sensing
- Auto-adjusting adaptive technology eliminates the need for manual adjustments
- Photocell can make sure lights stay off durring the day
- Isolated relay provides signalling to HVAC and ventalation systems
Certifications
| EU RoHS Indicator | : | No |
Specifications | ||
| Country of Origin | : | CN |
| Width | : | 5.300 in |
| Each - Width | : | 5.300 in |
| Industry Standard(s) | : | UL Listed |
| Application | : | Switching Relay |
| Color | : | Gray |
| Standard | : | UL Listed |
| Type | : | Sensors |
| Voltage Rating | : | 24 VDC |
| Class Code | : | A48 |
| Description - Invoice | : | SENSOR,NEMA 4X,WALL,1600 SQ',PCEL,RELAY |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536507000 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A48A450 |
| Photocell | : | Yes |
| Indicator(s) Type | : | PIR= Red LED |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 9.200x23.000x11.300 (in) |
| Carton - Gross Weight per Pack | : | 11.2 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585256122 |
| Carton - Total Units | : | 10 EA |
| Case Weight | : | 12.900 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet - GTIN - Package | : | 70783585256121 |
| Pallet Height | : | 46.000 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 451.500 lb. |
| Pallet Width | : | 40.000 in |
Downloads
Spec Sheet
Catalog Full Asset Reference
Catalog Page Asset Reference 1
Catalog Page Asset Reference 2
Installation Manuals Asset Reference
Sales Drawing Asset Reference
Warranty Document Asset Reference
AHP1600WRP AutoCAD Drawing
Load Control Application Guide
Load:Logic® Control Panels
Healthcare Application Guide
