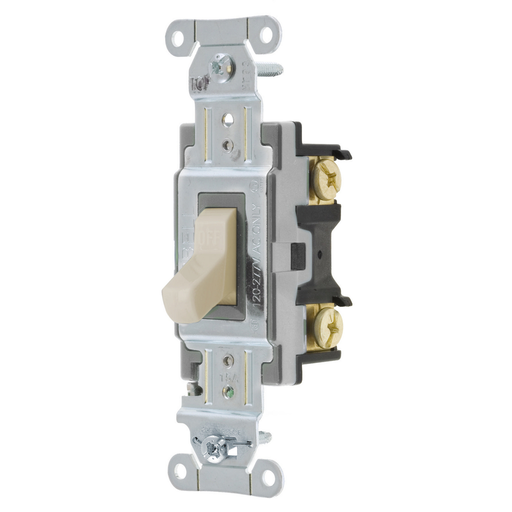

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond
MFG #CSB115LA
$8.90 / E
EACH
EACH
Product Description:
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond
HESCO Part Number
HUBCSB115LA
UPC
783585153810
Manufacturer Part Number
CSB115LA
Manufacturer
Hubbell Wiring Device
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond
MFG #CSB115LA
Product Description:
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond
HESCO Part Number
HUBCSB115LA
UPC
783585153810
Manufacturer Part Number
CSB115LA
Manufacturer
Hubbell Wiring Device
$8.90 / E
EACH
EACH
- Features
- Specifications
- Resources
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 4.18 in x 1.49 in x 1.83 in |
| Each - Width | : | 1.910 in |
| Height | : | 1.83 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.18 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Amperage Rating | : | 15 A |
| Color | : | Light Almond |
| Number of Poles | : | Single Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.18 in x 1.49 in x 1.83 in |
| Standard | : | UL Listed |
| Type | : | Toggle |
| Voltage Rating | : | 120-277 VAC |
| Weight | : | 0.15 lb. |
| Width | : | 1.49 in |
| Connectivity | : | Back and Side Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Single Pole |
| Style | : | Single Pole |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, SPEC, SP, 15A 120/277V, B+S, OW |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | CSB115OW |
| Sub Class Code | : | A16A250 |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.548x9.858x4.298 (in) |
| Carton - Gross Weight per Pack | : | 1.95 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585153810 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 7.500 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Country of Origin : CN Dimensions : 4.18 in x 1.49 in x 1.83 in Each - Width : 1.910 in Height : 1.83 in Industry Standard(s) : UL Listed Length : 4.18 in Temperature Rise - Max. : 30°C maximum at rated current Amperage Rating : 15 A Color : Light Almond Number of Poles : Single Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.18 in x 1.49 in x 1.83 in Standard : UL Listed Type : Toggle Voltage Rating : 120-277 VAC Weight : 0.15 lb. Width : 1.49 in Connectivity : Back and Side Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Single Pole Style : Single Pole Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, SPEC, SP, 15A 120/277V, B+S, OW Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : CSB115OW Sub Class Code : A16A250 Material : Nylon Base Unit of Measure : EA BOX SIZE : 3.548x9.858x4.298 (in) Carton - Gross Weight per Pack : 1.95 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585153810 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 7.500 lb. Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : Yes - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset Reference
CSB115LA AutoCAD Drawing
