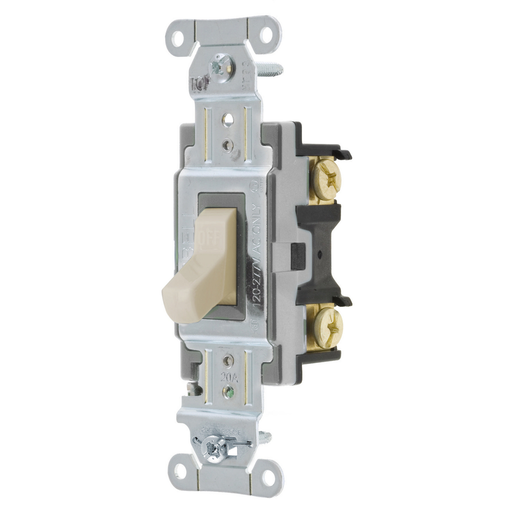

Toggle Switch, Double Pole 20A 120/277V
MFG #CSB220LA
$18.00 / E
EACH
EACH
Product Description:
Toggle Switch, Commercial Grade, Double-Pole, 20A 120/277V AC, Back and Side Wired
HESCO Part Number
HUBCSB220LA
UPC
783585154206
Manufacturer Part Number
CSB220LA
Manufacturer
Hubbell Wiring Device
Toggle Switch, Double Pole 20A 120/277V
MFG #CSB220LA
Product Description:
Toggle Switch, Commercial Grade, Double-Pole, 20A 120/277V AC, Back and Side Wired
HESCO Part Number
HUBCSB220LA
UPC
783585154206
Manufacturer Part Number
CSB220LA
Manufacturer
Hubbell Wiring Device
$18.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 4.18 in x 1.49 in x 1.83 in |
| Each - Width | : | 1.900 in |
| Height | : | 1.83 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.18 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Amperage Rating | : | 20 A |
| Color | : | Light Almond |
| Number of Poles | : | Double Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.18 in x 1.49 in x 1.83 in |
| Standard | : | UL Listed |
| Type | : | Toggle |
| Voltage Rating | : | 120-277 VAC |
| Weight | : | 0.15 lb. |
| Width | : | 1.49 in |
| Connectivity | : | Back and Side Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Double Pole |
| Style | : | Double Pole |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, COMM, DP, 20A 120/277V, B+S, LA |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | CSB220OW |
| Sub Class Code | : | A16A250 |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.548x9.858x4.298 (in) |
| Carton - Gross Weight per Pack | : | 2.1 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585154206 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 7.500 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Country of Origin : CN Dimensions : 4.18 in x 1.49 in x 1.83 in Each - Width : 1.900 in Height : 1.83 in Industry Standard(s) : UL Listed Length : 4.18 in Temperature Rise - Max. : 30°C maximum at rated current Amperage Rating : 20 A Color : Light Almond Number of Poles : Double Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.18 in x 1.49 in x 1.83 in Standard : UL Listed Type : Toggle Voltage Rating : 120-277 VAC Weight : 0.15 lb. Width : 1.49 in Connectivity : Back and Side Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Double Pole Style : Double Pole Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, COMM, DP, 20A 120/277V, B+S, LA Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : CSB220OW Sub Class Code : A16A250 Material : Nylon Base Unit of Measure : EA BOX SIZE : 3.548x9.858x4.298 (in) Carton - Gross Weight per Pack : 2.1 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585154206 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 7.500 lb. Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : Yes - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset Reference
CSB220LA AutoCAD Drawing
