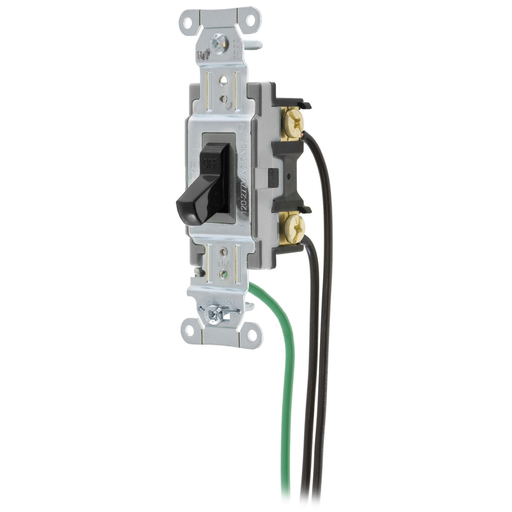

Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black
MFG #CSL115BK
$12.65 / E
EACH
EACH
Product Description:
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black
HESCO Part Number
HUBCSL115BK
UPC
783585187198
Manufacturer Part Number
CSL115BK
Manufacturer
Hubbell Wiring Device
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black
MFG #CSL115BK
Product Description:
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black
HESCO Part Number
HUBCSL115BK
UPC
783585187198
Manufacturer Part Number
CSL115BK
Manufacturer
Hubbell Wiring Device
$12.65 / E
EACH
EACH
- Features
- Specifications
- Resources
- Labor Saving
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 4.18 in x 1.34 in x 1.83 in |
| Each - Width | : | 1.910 in |
| Height | : | 1.83 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.18 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Amperage Rating | : | 15 A |
| Application | : | 8" #12 AWG THHN |
| Color | : | Black |
| Number of Poles | : | Single Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.18 in x 1.34 in x 1.83 in |
| Standard | : | UL Listed |
| Type | : | Toggle |
| Voltage Rating | : | 120-277 VAC |
| Width | : | 1.34 in |
| Connectivity | : | Pre-Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Single Pole |
| Style | : | Single Pole |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, SPEC, SP, 15A 120/277V, BK, WL |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A16A250 |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 5.625x18.375x14.625 (in) |
| Carton - Gross Weight per Pack | : | 9.000 lb. |
| Carton - Number of Sub Packs | : | 50 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585187198 |
| Carton - Total Units | : | 50 EA |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | No |
- Labor Saving
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
Specifications
Country of Origin : CN Dimensions : 4.18 in x 1.34 in x 1.83 in Each - Width : 1.910 in Height : 1.83 in Industry Standard(s) : UL Listed Length : 4.18 in Temperature Rise - Max. : 30°C maximum at rated current Amperage Rating : 15 A Application : 8" #12 AWG THHN Color : Black Number of Poles : Single Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.18 in x 1.34 in x 1.83 in Standard : UL Listed Type : Toggle Voltage Rating : 120-277 VAC Width : 1.34 in Connectivity : Pre-Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Single Pole Style : Single Pole Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, SPEC, SP, 15A 120/277V, BK, WL Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : A16A250 Material : Nylon Base Unit of Measure : EA BOX SIZE : 5.625x18.375x14.625 (in) Carton - Gross Weight per Pack : 9.000 lb. Carton - Number of Sub Packs : 50 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585187198 Carton - Total Units : 50 EA Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : No - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset ReferenceInstallation Manuals Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset Reference
CSL115BK AutoCAD Drawing
