Hubbell Wiring Device

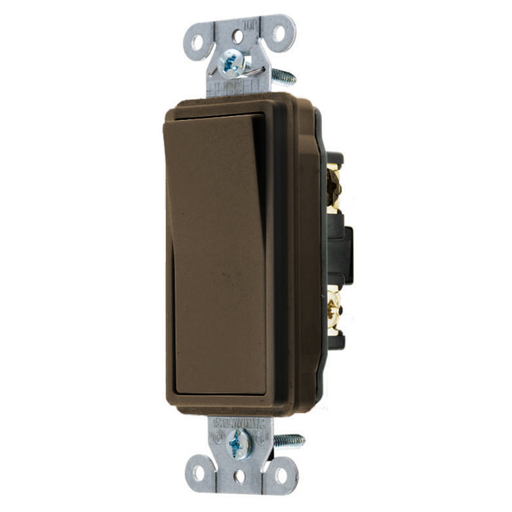

Switches and Lighting Controls, Decorator Series Specification Grade, Rocker Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, Brown
MFG #DS315
$50.30 / E
EACH
EACH
Product Description:
Switches and Lighting Controls, Decorator Series Specification Grade, Rocker Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, Brown
HESCO Part Number
HUBDS315
UPC
783585151274
Manufacturer Part Number
DS315
Manufacturer
Hubbell Wiring Device
Hubbell Wiring Device
Switches and Lighting Controls, Decorator Series Specification Grade, Rocker Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, Brown
MFG #DS315
Product Description:
Switches and Lighting Controls, Decorator Series Specification Grade, Rocker Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, Brown
HESCO Part Number
HUBDS315
UPC
783585151274
Manufacturer Part Number
DS315
Manufacturer
Hubbell Wiring Device
$50.30 / E
EACH
EACH
- Features
- Specifications
- Resources
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 3.91 in x 1.41 in x 1.01 in |
| Each - Width | : | 1.910 in |
| Height | : | 1.01 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 3.91 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Action | : | SPDT |
| Amperage Rating | : | 15 A |
| Color | : | Brown |
| Number of Poles | : | Single Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 3.91 in x 1.41 in x 1.01 in |
| Standard | : | UL Listed |
| Type | : | Rocker/Decorator |
| Voltage Rating | : | 120-277 VAC |
| Weight | : | 0.2 lb. |
| Width | : | 1.41 in |
| Connectivity | : | Back and Side Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Single Pole |
| Style | : | Three Way |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, DECO SER, 3W, 15A 120/277V, BR |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | 2103;HBL2103 |
| Sub Class Code | : | A16A250 |
| Material | : | Thermoplastic |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.548x9.858x4.298 (in) |
| Carton - Gross Weight per Pack | : | 2.1 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585151274 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 10.000 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Country of Origin : CN Dimensions : 3.91 in x 1.41 in x 1.01 in Each - Width : 1.910 in Height : 1.01 in Industry Standard(s) : UL Listed Length : 3.91 in Temperature Rise - Max. : 30°C maximum at rated current Action : SPDT Amperage Rating : 15 A Color : Brown Number of Poles : Single Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 3.91 in x 1.41 in x 1.01 in Standard : UL Listed Type : Rocker/Decorator Voltage Rating : 120-277 VAC Weight : 0.2 lb. Width : 1.41 in Connectivity : Back and Side Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Single Pole Style : Three Way Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, DECO SER, 3W, 15A 120/277V, BR Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : 2103;HBL2103 Sub Class Code : A16A250 Material : Thermoplastic Base Unit of Measure : EA BOX SIZE : 3.548x9.858x4.298 (in) Carton - Gross Weight per Pack : 2.1 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585151274 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 10.000 lb. Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : Yes - Downloads
