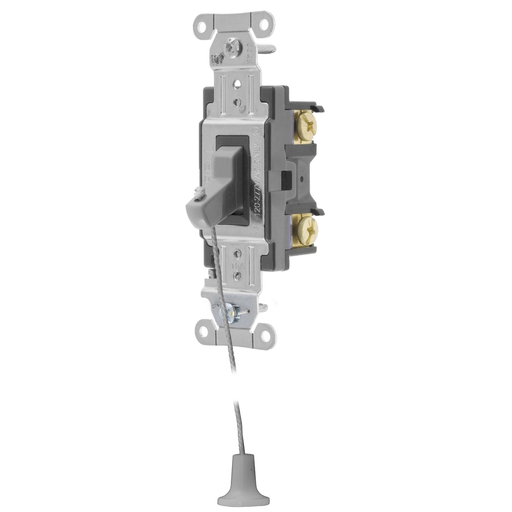

Switches and Lighting Controls, Hospital Call Switch, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Gray, With Lanyard
MFG #HBL1221GHCS
$33.90 / E
EACH
EACH
Product Description:
Switches and Lighting Controls, Hospital Call Switch, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Gray, With Lanyard
HESCO Part Number
HUBHBL1221GHCS
UPC
783585188010
Manufacturer Part Number
HBL1221GHCS
Manufacturer
Hubbell Wiring Device
Switches and Lighting Controls, Hospital Call Switch, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Gray, With Lanyard
MFG #HBL1221GHCS
Product Description:
Switches and Lighting Controls, Hospital Call Switch, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Gray, With Lanyard
HESCO Part Number
HUBHBL1221GHCS
UPC
783585188010
Manufacturer Part Number
HBL1221GHCS
Manufacturer
Hubbell Wiring Device
$33.90 / E
EACH
EACH
- Features
- Specifications
- Resources
- Large brass binding head screws with deep slots
- Provides a means of alerting trouble
- Strip gauge for accurate wiring
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 4.18 in x 1.45 in x 1.82 in |
| Each - Width | : | 1.910 in |
| Height | : | 1.82 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.18 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Amperage Rating | : | 20 A |
| Application | : | Back and Side Wired |
| Color | : | Gray |
| Number of Poles | : | Single Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.18 in x 1.45 in x 1.82 in |
| Standard | : | UL Listed |
| Type | : | Toggle |
| Voltage Rating | : | 120-277 VAC |
| Width | : | 1.45 in |
| Connectivity | : | Back and Side Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Single Pole |
| Style | : | Single Pole |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, HOSP CALL, SP, 20A, GY |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A16A240 |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.548x9.858x4.298 (in) |
| Carton - Gross Weight per Pack | : | 1.65 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585188010 |
| Carton - Total Units | : | 10 EA |
| Case Weight | : | 12.500 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | No |
- Large brass binding head screws with deep slots
- Provides a means of alerting trouble
- Strip gauge for accurate wiring
Specifications
Country of Origin : CN Dimensions : 4.18 in x 1.45 in x 1.82 in Each - Width : 1.910 in Height : 1.82 in Industry Standard(s) : UL Listed Length : 4.18 in Temperature Rise - Max. : 30°C maximum at rated current Amperage Rating : 20 A Application : Back and Side Wired Color : Gray Number of Poles : Single Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.18 in x 1.45 in x 1.82 in Standard : UL Listed Type : Toggle Voltage Rating : 120-277 VAC Width : 1.45 in Connectivity : Back and Side Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Single Pole Style : Single Pole Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, HOSP CALL, SP, 20A, GY Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : A16A240 Base Unit of Measure : EA BOX SIZE : 3.548x9.858x4.298 (in) Carton - Gross Weight per Pack : 1.65 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585188010 Carton - Total Units : 10 EA Case Weight : 12.500 lb. Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : No - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset ReferenceInstallation Manuals Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset Reference
HBL1221GHCS AutoCAD Drawing
