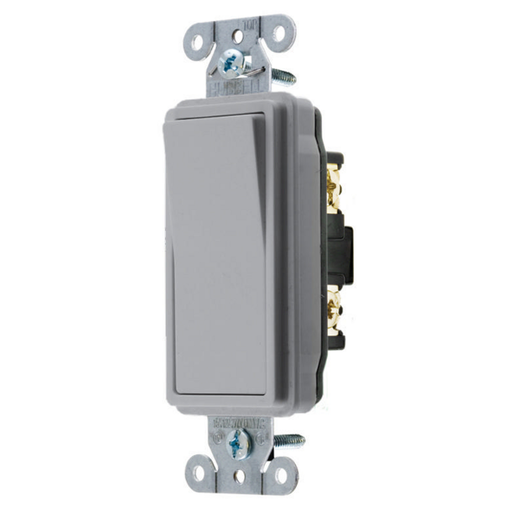

Switches and Lighting Control, Decorator Switch, Specification Grade, Rocker Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Gray
MFG #HBL9361
$129.00 / E
EACH
EACH
Product Description:
Switches and Lighting Control, Decorator Switch, Specification Grade, Rocker Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Gray
HESCO Part Number
HUBHBL9361
UPC
783585154398
Manufacturer Part Number
HBL9361
Manufacturer
Hubbell Wiring Device
Switches and Lighting Control, Decorator Switch, Specification Grade, Rocker Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Gray
MFG #HBL9361
Product Description:
Switches and Lighting Control, Decorator Switch, Specification Grade, Rocker Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Gray
HESCO Part Number
HUBHBL9361
UPC
783585154398
Manufacturer Part Number
HBL9361
Manufacturer
Hubbell Wiring Device
$129.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 4.28 in x 1.43 in x 1.54 in |
| Each - Width | : | 2.000 in |
| Height | : | 1.54 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.28 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Amperage Rating | : | 15 A |
| Color | : | Gray |
| Number of Poles | : | Single Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.28 in x 1.43 in x 1.54 in |
| Standard | : | UL Listed |
| Type | : | Rocker/Decorator |
| Voltage Rating | : | 120-277 VAC |
| Weight | : | 0.2 lb. |
| Width | : | 1.43 in |
| Connectivity | : | Back and Side Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Single Pole |
| Style | : | Single Pole |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, DECO SER, SP, 15A 120/277V, GY |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | 2101GY;DS115G;HBL2101GY |
| Sub Class Code | : | A16A250 |
| Material | : | Thermoplastic |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.700x10.000x4.400 (in) |
| Carton - Gross Weight per Pack | : | 2 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585154398 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 9.000 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Country of Origin : CN Dimensions : 4.28 in x 1.43 in x 1.54 in Each - Width : 2.000 in Height : 1.54 in Industry Standard(s) : UL Listed Length : 4.28 in Temperature Rise - Max. : 30°C maximum at rated current Amperage Rating : 15 A Color : Gray Number of Poles : Single Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.28 in x 1.43 in x 1.54 in Standard : UL Listed Type : Rocker/Decorator Voltage Rating : 120-277 VAC Weight : 0.2 lb. Width : 1.43 in Connectivity : Back and Side Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Single Pole Style : Single Pole Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, DECO SER, SP, 15A 120/277V, GY Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : 2101GY;DS115G;HBL2101GY Sub Class Code : A16A250 Material : Thermoplastic Base Unit of Measure : EA BOX SIZE : 3.700x10.000x4.400 (in) Carton - Gross Weight per Pack : 2 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585154398 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 9.000 lb. Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : Yes - Downloads
