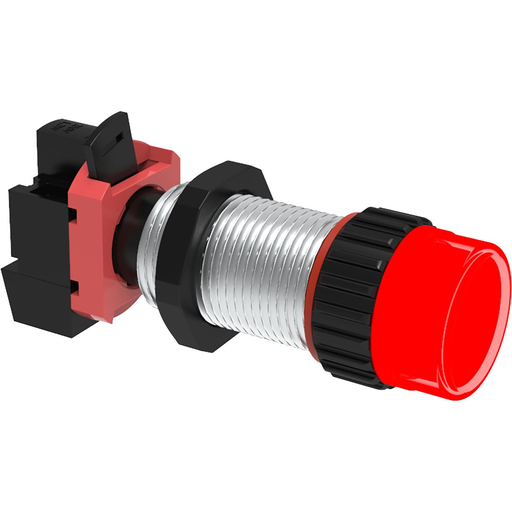

Pilot Light, Red with Lamp Holder & Lamp 24V AC/DC - Long Length 40mm, 3/4 NPSM
MFG #GZB3-R4
$403.78 / E
EACH
EACH
Product Description:
Pilot Light, Red with Lamp Holder & Lamp 24V AC/DC - Long Length 40mm, 3/4 NPSM
HESCO Part Number
KILGZB3R4
UPC
783936175843
Manufacturer Part Number
GZB3-R4
Manufacturer
Killark
Pilot Light, Red with Lamp Holder & Lamp 24V AC/DC - Long Length 40mm, 3/4 NPSM
MFG #GZB3-R4
Product Description:
Pilot Light, Red with Lamp Holder & Lamp 24V AC/DC - Long Length 40mm, 3/4 NPSM
HESCO Part Number
KILGZB3R4
UPC
783936175843
Manufacturer Part Number
GZB3-R4
Manufacturer
Killark
$403.78 / E
EACH
EACH
- Features
- Specifications
- Resources
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread and M22x1.5 on request.
- Control operators can be grouped into a single assembly thus reducing installation time and cost.
- Killark GZ SERIES Operators are a component for use in conjunction with a Hazardous Location enclosure to provide control solutions for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified. ATEX/IECEx certified components. See Product Details for certificate numbers.
Specifications
| Color | : | Red |
| Country of Origin | : | BR |
| Dimensions | : | 4.2 in x 1.8 in x 1.8 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22;II 2 G Ex db IIC/IIB+H2Gb;II 2 D Ex tb IIIC Db |
| Height | : | 1.8 in |
| Length | : | 4.2 in |
| Weight | : | 0.25 lb. |
| Width | : | 1.8 in |
| Amperage Rating | : | 12 mA |
| Frequency Rating | : | 50/60 Hz |
| Nema Rating | : | Type 4X |
| Type | : | Pilot Light |
| Wattage | : | 1.5 W |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D25 |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8531809051 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | D25D250 |
| UL File Number | : | E12379 |
| Series | : | GZ |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936175843 |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
Downloads
Spec Sheet
STEP 3D Model Asset Reference
Catalog Full Asset Reference
Certification Document Asset Reference 1
Certification Document Asset Reference 2
Certification Document Asset Reference 3
Installation Manuals Asset Reference
Sales Drawing Asset Reference
Specification Sheet Asset Reference
GZ Series Dimensional Drawings
Spec SheetSTEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCertification Document Asset Reference 1Certification Document Asset Reference 2Certification Document Asset Reference 3Installation Manuals Asset ReferenceSales Drawing Asset ReferenceSpecification Sheet Asset ReferenceGZ Series Dimensional Drawings- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread and M22x1.5 on request.
- Control operators can be grouped into a single assembly thus reducing installation time and cost.
- Killark GZ SERIES Operators are a component for use in conjunction with a Hazardous Location enclosure to provide control solutions for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified. ATEX/IECEx certified components. See Product Details for certificate numbers.
Specifications
Color : Red Country of Origin : BR Dimensions : 4.2 in x 1.8 in x 1.8 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22;II 2 G Ex db IIC/IIB+H2Gb;II 2 D Ex tb IIIC Db Height : 1.8 in Length : 4.2 in Weight : 0.25 lb. Width : 1.8 in Amperage Rating : 12 mA Frequency Rating : 50/60 Hz Nema Rating : Type 4X Type : Pilot Light Wattage : 1.5 W ARRA Compliant : Contact Manufacturer Class Code : D25 Freight Class Code : 06168002 Harmonization Code : 8531809051 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : D25D250 UL File Number : E12379 Series : GZ Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936175843 Certifications
EU RoHS Indicator : Contact Manufacturer - DownloadsSpec SheetSTEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCertification Document Asset Reference 1Certification Document Asset Reference 2Certification Document Asset Reference 3Installation Manuals Asset ReferenceSales Drawing Asset ReferenceSpecification Sheet Asset ReferenceGZ Series Dimensional Drawings
