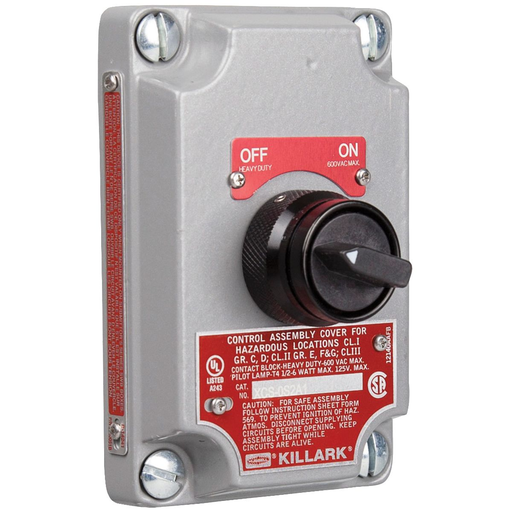

XCS Series - Aluminum Maintained Contact 2-Position Selector Switch Cover With Device - "Off - On" Nameplate - 1NO/1NC Contact Rating
MFG #XCS-0S2A1
$452.51Â /Â E
EACH
EACH
Product Description:
XCS Series - Aluminum Maintained Contact 2-Position Selector Switch Cover With Device - "Off - On" Nameplate - 1NO/1NC Contact Rating
HESCO Part Number
KILXCS0S2A1
UPC
783936890135
Manufacturer Part Number
XCS-0S2A1
Manufacturer
Killark
XCS Series - Aluminum Maintained Contact 2-Position Selector Switch Cover With Device - "Off - On" Nameplate - 1NO/1NC Contact Rating
MFG #XCS-0S2A1
Product Description:
XCS Series - Aluminum Maintained Contact 2-Position Selector Switch Cover With Device - "Off - On" Nameplate - 1NO/1NC Contact Rating
HESCO Part Number
KILXCS0S2A1
UPC
783936890135
Manufacturer Part Number
XCS-0S2A1
Manufacturer
Killark
$452.51Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
| Number of Poles | :Â Â | 1 |
| Size | :Â Â | 6.875 in x 5.75 in x 4.75 in |
| Special Features | :Â Â | Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified. |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Back Box Type | :Â Â | SWB |
| Color | :Â Â | Black |
| Country of Origin | :Â Â | US |
| Depth | :Â Â | 3-5/16 |
| Dimensions | :Â Â | 6.875 in x 5.75 in x 4.75 in |
| Each - Width | :Â Â | 5.750 in |
| Hazardous Rating(s) | :Â Â | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | :Â Â | 4.75 in |
| Length | :Â Â | 6.875 in |
| Width | :Â Â | 5.75 in |
| Action | :Â Â | Rotary |
| Actuator | :Â Â | 2 Position Selector Switch |
| Amperage Rating | :Â Â | 10 A |
| Application | :Â Â | Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil |
| Contact Rating | :Â Â | 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; |
| Frequency Rating | :Â Â | 50/60 Hz |
| Number Of Poles | :Â Â | 1 |
| Type | :Â Â | Aluminum Cover With 2-Position Selector Switch |
| Class Code | :Â Â | D25 |
| Description - Invoice | :Â Â | CLI 2POS SEL SW CV (CS) |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7616999999 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 15 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Replaced Catalog Number | :Â Â | XCS-0S2A0 |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D25D250 |
| CSA File Number | :Â Â | LR11714 |
| Gross Weight with Packaging | :Â Â | 1.52 |
| UL File Number | :Â Â | E53360 |
| Material | :Â Â | Copper-free aluminum |
| Series | :Â Â | XCS |
| Base Unit of Measure | :Â Â | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936890135 |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Number of Poles :Â Â 1 Size :Â Â 6.875 in x 5.75 in x 4.75 in Special Features :Â Â Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified. ARRA Compliant :Â Â Contact Manufacturer Back Box Type :Â Â SWB Color :Â Â Black Country of Origin :Â Â US Depth :Â Â 3-5/16 Dimensions :Â Â 6.875 in x 5.75 in x 4.75 in Each - Width :Â Â 5.750 in Hazardous Rating(s) :Â Â Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height :Â Â 4.75 in Length :Â Â 6.875 in Width :Â Â 5.75 in Action :Â Â Rotary Actuator :Â Â 2 Position Selector Switch Amperage Rating :Â Â 10 A Application :Â Â Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil Contact Rating :Â Â 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; Frequency Rating :Â Â 50/60 Hz Number Of Poles :Â Â 1 Type :Â Â Aluminum Cover With 2-Position Selector Switch Class Code :Â Â D25 Description - Invoice :Â Â CLI 2POS SEL SW CV (CS) Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7616999999 Image Actual Or Representative :Â Â R Lead Time :Â Â 15 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Replaced Catalog Number :Â Â XCS-0S2A0 Returnable Indicator :Â Â Yes Sub Class Code :Â Â D25D250 CSA File Number :Â Â LR11714 Gross Weight with Packaging :Â Â 1.52 UL File Number :Â Â E53360 Material :Â Â Copper-free aluminum Series :Â Â XCS Base Unit of Measure :Â Â EA Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936890135 Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
