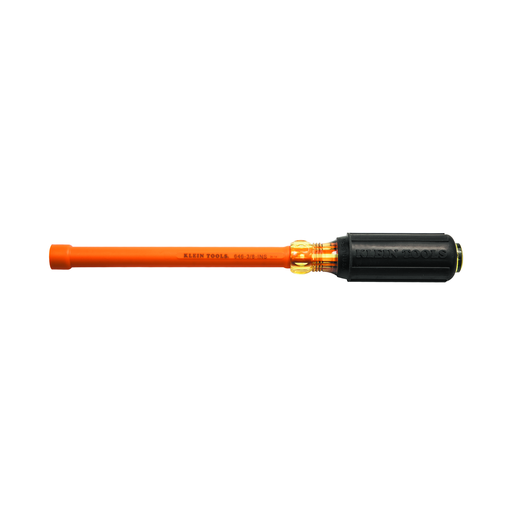

3/16-Inch Insulated Nut Driver 6-Inch Hollow Shaft
MFG #646-3/16-INS
Requires Quote
 / EACH
Product Description:
Get those hard to reach nuts and bolts with Klein's full hollow shaft nut driver for long bolt applications. Its two layers of insulation protect against electric shock and is individually tested to exceed standards. The bright orange outer coating is flame and impact resistant. Its high-dielectric white inner coating is bonded to the tool for extra toughness.
HESCO Part Number
KLE646316INS
UPC
092644652257
Manufacturer Part Number
646-3/16-INS
Manufacturer
Klein Tools
3/16-Inch Insulated Nut Driver 6-Inch Hollow Shaft
MFG #646-3/16-INS
Product Description:
Get those hard to reach nuts and bolts with Klein's full hollow shaft nut driver for long bolt applications. Its two layers of insulation protect against electric shock and is individually tested to exceed standards. The bright orange outer coating is flame and impact resistant. Its high-dielectric white inner coating is bonded to the tool for extra toughness.
HESCO Part Number
KLE646316INS
UPC
092644652257
Manufacturer Part Number
646-3/16-INS
Manufacturer
Klein Tools
Requires Quote
 / EACH
- Features
- Specifications
- Resources
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Two layers of insulation provide protection against electric shock
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
- A flame retardant, impact-resistant, bright orange outer coating
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- Hollow shafts make it possible to work on stacked circuit boards or other long bolt applications
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Tip-Ident quickly identifies nut driver size
- Cushion-Grip handles for greater torque and comfort
- Tip-Ident Quickly Identifies Nut Driver Size
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool with a flame retardant, impact-resistant, bright orange outer coating
- Made in USA
- Cushion-Grip™ handles for greater torque and comfort
Specifications
| Country of Origin | :Â Â | United States |
| Style Name | :Â Â | Non-Magnetic |
| Size Name | :Â Â | 3/16-Inch tip, 6 inch Shaft |
| SAE/Metric | :Â Â | SAE |
| Size | :Â Â | 3/16" |
| Magnetic | :Â Â | No |
| Overall Length | :Â Â | 9.75" (24.8 cm) |
| Standard | :Â Â | IEC 60900 and ASTM F1505 |
| Material | :Â Â | Steel |
| Type | :Â Â | Hollow |
| Color Code | :Â Â | Black |
| Nut Driver Sizes | :Â Â | 3/16" |
| Handle Material | :Â Â | High-Dielectric Plastic |
| Shaft Length | :Â Â | 6" (15.2 cm) |
| Insulated | :Â Â | Yes |
| Application | :Â Â | Stacked Circuit Boards, Long Bolt Applications |
| Measurement Standard | :Â Â | SAE |
| Height | :Â Â | 1.0000 in |
| Width | :Â Â | 1.0000 in |
| Depth | :Â Â | 9.7500 in |
| Weight | :Â Â | 0.1500 lbs |
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Two layers of insulation provide protection against electric shock
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
- A flame retardant, impact-resistant, bright orange outer coating
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- Hollow shafts make it possible to work on stacked circuit boards or other long bolt applications
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Tip-Ident quickly identifies nut driver size
- Cushion-Grip handles for greater torque and comfort
- Tip-Ident Quickly Identifies Nut Driver Size
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool with a flame retardant, impact-resistant, bright orange outer coating
- Made in USA
- Cushion-Grip™ handles for greater torque and comfort
Specifications
Country of Origin :Â Â United States Style Name :Â Â Non-Magnetic Size Name :Â Â 3/16-Inch tip, 6 inch Shaft SAE/Metric :Â Â SAE Size :Â Â 3/16" Magnetic :Â Â No Overall Length :Â Â 9.75" (24.8 cm) Standard :Â Â IEC 60900 and ASTM F1505 Material :Â Â Steel Type :Â Â Hollow Color Code :Â Â Black Nut Driver Sizes :Â Â 3/16" Handle Material :Â Â High-Dielectric Plastic Shaft Length :Â Â 6" (15.2 cm) Insulated :Â Â Yes Application :Â Â Stacked Circuit Boards, Long Bolt Applications Measurement Standard :Â Â SAE Height :Â Â 1.0000 in Width :Â Â 1.0000 in Depth :Â Â 9.7500 in Weight :Â Â 0.1500 lbs - Downloads
