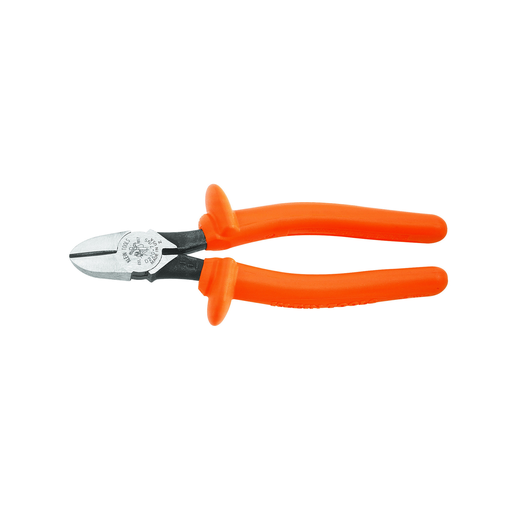

Diagonal Cutting Pliers, Insulated, 7-Inch
MFG #D220-7-INS
Requires Quote
 / EACH
Product Description:
These Insulated Diagonal-Cutting pliers have dual layered grips that are flame retardant, impact resistant, and rated for 1000-volts. They feature a tapered nose design with induction hardened cutting knives for durability. They are made of forged steel and have a hot-riveted joint for smooth action and no handle wobble.
HESCO Part Number
KLED2207INS
UPC
092644720314
Manufacturer Part Number
D220-7-INS
Manufacturer
Klein Tools
Diagonal Cutting Pliers, Insulated, 7-Inch
MFG #D220-7-INS
Product Description:
These Insulated Diagonal-Cutting pliers have dual layered grips that are flame retardant, impact resistant, and rated for 1000-volts. They feature a tapered nose design with induction hardened cutting knives for durability. They are made of forged steel and have a hot-riveted joint for smooth action and no handle wobble.
HESCO Part Number
KLED2207INS
UPC
092644720314
Manufacturer Part Number
D220-7-INS
Manufacturer
Klein Tools
Requires Quote
 / EACH
- Features
- Specifications
- Resources
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Durable molded insulation meets or exceeds ASTM F1505-15 and IEC 60900: 2018 standards for insulated tools
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Clearly marked with the official 1000-volt rating symbol
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Wear approved eye protection.
- Heavy-duty tapered nose design
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Induction hardened cutting knives for long life
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- One-Inch deep jaws easily reach into confined spaces
- Flame retardant, impact-resistant, bright orange outer coating
- Integral guards help prevent hand contact with conductive parts
- Hot-riveted joint for smooth action and no handle wobble
- Forged steel for maximum durability
- Flame Retardant and Impact Resistant Handle
- Pliers grips made of durable molded insulation meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
- Pliers with grips made of durable molded insulation meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
- Heavy-duty tapered nose design and induction hardened cutting knives for long life
- Made in USA
- Forged in the USA with custom, US-made tool steel for maximum durability
- Tapered nose design and induction hardened cutting knives for long life
Specifications
| Country of Origin | :Â Â | United States |
| Item | :Â Â | Diagonal-Cutting |
| Application | :Â Â | ACSR, Screws, Nails and Most Hardened Wire |
| Jaw Capacity | :Â Â | 1.1" (2.8 cm) |
| Jaw Length | :Â Â | 1" (2.5 cm) |
| Handle Finish | :Â Â | 2-Layer Insulation |
| Jaw Thickness | :Â Â | 0.5" (1.3 cm) |
| Handle Color | :Â Â | Orange |
| Handle Length | :Â Â | 4.34" (11 cm) |
| Nose Type | :Â Â | Tapered |
| Type | :Â Â | Diagonal Cutting Pliers |
| Jaw Width | :Â Â | 0.969" (2.5 cm) |
| Cutting Knives | :Â Â | Standard |
| Insulated | :Â Â | Yes |
| Standard | :Â Â | IEC 60900 and ASTM F1505 |
| Material | :Â Â | Induction Hardened Steel |
| Cut Style | :Â Â | Diagonal-Cutting |
| Overall Length | :Â Â | 7.67" (19.5 cm) |
| Joint Type | :Â Â | Hot-Riveted |
| Height | :Â Â | 0.5000 in |
| Width | :Â Â | 3.9000 in |
| Depth | :Â Â | 7.8750 in |
| Weight | :Â Â | 0.7000 lbs |
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Durable molded insulation meets or exceeds ASTM F1505-15 and IEC 60900: 2018 standards for insulated tools
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Clearly marked with the official 1000-volt rating symbol
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Wear approved eye protection.
- Heavy-duty tapered nose design
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Induction hardened cutting knives for long life
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- One-Inch deep jaws easily reach into confined spaces
- Flame retardant, impact-resistant, bright orange outer coating
- Integral guards help prevent hand contact with conductive parts
- Hot-riveted joint for smooth action and no handle wobble
- Forged steel for maximum durability
- Flame Retardant and Impact Resistant Handle
- Pliers grips made of durable molded insulation meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
- Pliers with grips made of durable molded insulation meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
- Heavy-duty tapered nose design and induction hardened cutting knives for long life
- Made in USA
- Forged in the USA with custom, US-made tool steel for maximum durability
- Tapered nose design and induction hardened cutting knives for long life
Specifications
Country of Origin :Â Â United States Item :Â Â Diagonal-Cutting Application :Â Â ACSR, Screws, Nails and Most Hardened Wire Jaw Capacity :Â Â 1.1" (2.8 cm) Jaw Length :Â Â 1" (2.5 cm) Handle Finish :Â Â 2-Layer Insulation Jaw Thickness :Â Â 0.5" (1.3 cm) Handle Color :Â Â Orange Handle Length :Â Â 4.34" (11 cm) Nose Type :Â Â Tapered Type :Â Â Diagonal Cutting Pliers Jaw Width :Â Â 0.969" (2.5 cm) Cutting Knives :Â Â Standard Insulated :Â Â Yes Standard :Â Â IEC 60900 and ASTM F1505 Material :Â Â Induction Hardened Steel Cut Style :Â Â Diagonal-Cutting Overall Length :Â Â 7.67" (19.5 cm) Joint Type :Â Â Hot-Riveted Height :Â Â 0.5000 in Width :Â Â 3.9000 in Depth :Â Â 7.8750 in Weight :Â Â 0.7000 lbs - Downloads
