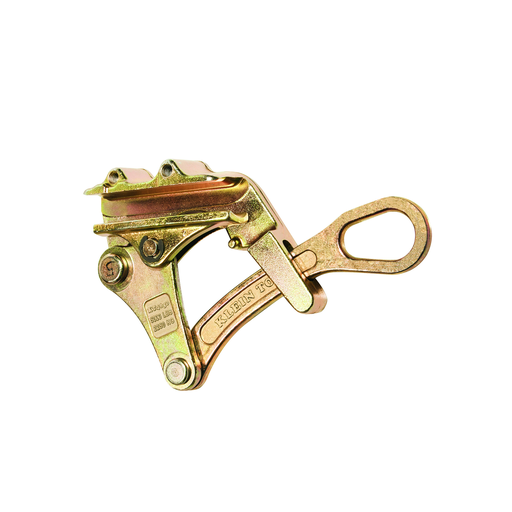

Wide Range Distribution Grip
MFG #KT4650
Requires Quote
 / EACH
Product Description:
The newest grip from Klein Tools features a large jaw opening that can accommodate a wide range of cable types and sizes. It also has both a ''V'' groove shaped jaw and a round jaw. The large handle opening accepts many size hooks used on hoists, winches, and tackle blocks.
HESCO Part Number
KLEKT4650
UPC
092644477591
Manufacturer Part Number
KT4650
Manufacturer
Klein Tools
Wide Range Distribution Grip
MFG #KT4650
Product Description:
The newest grip from Klein Tools features a large jaw opening that can accommodate a wide range of cable types and sizes. It also has both a ''V'' groove shaped jaw and a round jaw. The large handle opening accepts many size hooks used on hoists, winches, and tackle blocks.
HESCO Part Number
KLEKT4650
UPC
092644477591
Manufacturer Part Number
KT4650
Manufacturer
Klein Tools
Requires Quote
 / EACH
- Features
- Specifications
- Resources
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Round jaw provides maximum contact with the cable minimizing deformation
- When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
- Large handle opening accommodates a wide variety of hooks on hoists, winches, and tackle blocks
- Do not exceed rated capacity.
- Max Safe Load of 5000-Pound (2268 kg)
- Always match proper size and type of grip to application.
- 11.25-Inches (285.8 mm) long
- Grips are to be used for temporary installation, not for permanent anchorage.
- Lightweight; only 4.4-Pound (2.0 kg)
- Spring assist
- Spring
- Made in USA
Specifications
| Country of Origin | :Â Â | United States |
| Jaw Type | :Â Â | Round - Serrated |
| Type | :Â Â | Parallel Jaw Grip |
| Maximum Safe Load | :Â Â | 5000 lb (2268 kg) |
| Cable Diameter | :Â Â | 0.16" to 0.9" (4.06 to 22.86 mm) |
| Cable Type | :Â Â | ACSR |
| Jaw Length | :Â Â | 4.5" (11.4 cm) |
| Application | :Â Â | Large Range of Cables |
| Overall Height | :Â Â | 1.797" (4.6 cm) |
| Overall Length | :Â Â | 11.25" (28.6 cm) |
| Overall Width | :Â Â | 4.5" (11.4 cm) |
| Hot Latch | :Â Â | No |
| Spring | :Â Â | Yes |
| Locking Handle | :Â Â | No |
| Swing Latch | :Â Â | No |
| Height | :Â Â | 1.8000 in |
| Width | :Â Â | 4.5000 in |
| Depth | :Â Â | 11.2500 in |
| Weight | :Â Â | 4.3650 lbs |
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Round jaw provides maximum contact with the cable minimizing deformation
- When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
- Large handle opening accommodates a wide variety of hooks on hoists, winches, and tackle blocks
- Do not exceed rated capacity.
- Max Safe Load of 5000-Pound (2268 kg)
- Always match proper size and type of grip to application.
- 11.25-Inches (285.8 mm) long
- Grips are to be used for temporary installation, not for permanent anchorage.
- Lightweight; only 4.4-Pound (2.0 kg)
- Spring assist
- Spring
- Made in USA
Specifications
Country of Origin :Â Â United States Jaw Type :Â Â Round - Serrated Type :Â Â Parallel Jaw Grip Maximum Safe Load :Â Â 5000 lb (2268 kg) Cable Diameter :Â Â 0.16" to 0.9" (4.06 to 22.86 mm) Cable Type :Â Â ACSR Jaw Length :Â Â 4.5" (11.4 cm) Application :Â Â Large Range of Cables Overall Height :Â Â 1.797" (4.6 cm) Overall Length :Â Â 11.25" (28.6 cm) Overall Width :Â Â 4.5" (11.4 cm) Hot Latch :Â Â No Spring :Â Â Yes Locking Handle :Â Â No Swing Latch :Â Â No Height :Â Â 1.8000 in Width :Â Â 4.5000 in Depth :Â Â 11.2500 in Weight :Â Â 4.3650 lbs - Downloads
Spec Sheet
Video DownloadVideo Download
InstructionsGrip_Maintenance_Guide_139168ART.pdf
