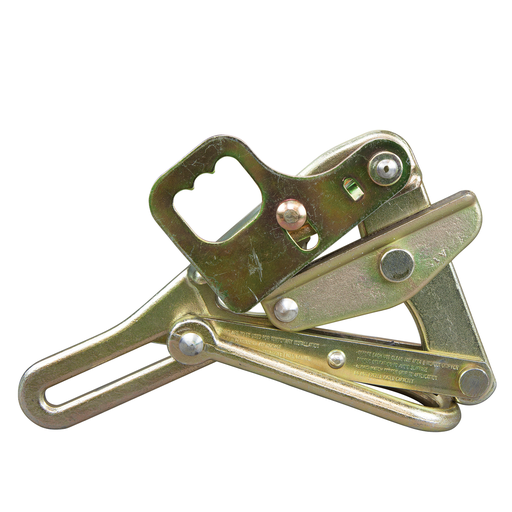

Chicago Grip, Forged, Hot-Line, 0.20 to 0.40-Inch
MFG #S1656-20H
Requires Quote
 / EACH
Product Description:
The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.
HESCO Part Number
KLES165620H
UPC
092644471063
Manufacturer Part Number
S1656-20H
Manufacturer
Klein Tools
Chicago Grip, Forged, Hot-Line, 0.20 to 0.40-Inch
MFG #S1656-20H
Product Description:
The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.
HESCO Part Number
KLES165620H
UPC
092644471063
Manufacturer Part Number
S1656-20H
Manufacturer
Klein Tools
Requires Quote
 / EACH
- Features
- Specifications
- Resources
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Jaw length: 4-3/16-Inch
- Do not exceed rated capacity.
- Maximum safe load of 4,500 pounds
- Always match proper size and type of grip to application.
- Standard hot-line grips are not supplied with springs or lock-open features
- Grips are to be used for temporary installation, not for permanent anchorage.
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Made in USA
Specifications
| Country of Origin | :Â Â | United States |
| Type | :Â Â | Chicago Grip |
| Maximum Safe Load | :Â Â | 4500 lb (2041 kg) |
| Jaw Length | :Â Â | 4" (10.2 cm) |
| Cable Diameter | :Â Â | 0.2" to 0.4" (5.08 to 10.16 mm) |
| Cable Type | :Â Â | Copper, ACSR, AAC |
| Jaw Type | :Â Â | Round |
| Locking Handle | :Â Â | Yes |
| Hot Latch | :Â Â | Yes |
| Spring | :Â Â | Yes |
| Swing Latch | :Â Â | No |
| Height | :Â Â | 2.0000 in |
| Width | :Â Â | 6.0000 in |
| Depth | :Â Â | 8.0000 in |
| Weight | :Â Â | 0.1000 lbs |
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Jaw length: 4-3/16-Inch
- Do not exceed rated capacity.
- Maximum safe load of 4,500 pounds
- Always match proper size and type of grip to application.
- Standard hot-line grips are not supplied with springs or lock-open features
- Grips are to be used for temporary installation, not for permanent anchorage.
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Made in USA
Specifications
Country of Origin :Â Â United States Type :Â Â Chicago Grip Maximum Safe Load :Â Â 4500 lb (2041 kg) Jaw Length :Â Â 4" (10.2 cm) Cable Diameter :Â Â 0.2" to 0.4" (5.08 to 10.16 mm) Cable Type :Â Â Copper, ACSR, AAC Jaw Type :Â Â Round Locking Handle :Â Â Yes Hot Latch :Â Â Yes Spring :Â Â Yes Swing Latch :Â Â No Height :Â Â 2.0000 in Width :Â Â 6.0000 in Depth :Â Â 8.0000 in Weight :Â Â 0.1000 lbs - Downloads
Spec Sheet
Video DownloadVideo Download
InstructionsGrip_Maintenance_Guide_139168ART.pdf
