H100X044H2T-2 Heat Shrink Label
MFG #H100X044H2T-2
$739.36 / E
EACH
EACH
Product Description:

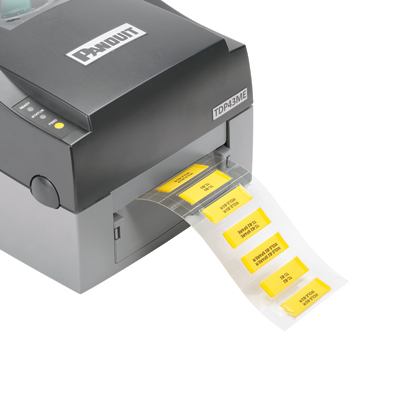

The thermal transfer military grade heat-shrink label in yellow is 2-sided with a 1/4" (6.35mm) diameter and made of 3:1 flattened polyolefin. It is 1" (25.4mm) wide and .44" (11.2mm) high. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. The sleeve has 2 label(s) per row and 1000 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable.
HESCO Part Number
PANH100X044H2T2
UPC
074983088607
Manufacturer Part Number
H100X044H2T-2
Manufacturer
Panduit
H100X044H2T-2 Heat Shrink Label
MFG #H100X044H2T-2
Product Description:
The thermal transfer military grade heat-shrink label in yellow is 2-sided with a 1/4" (6.35mm) diameter and made of 3:1 flattened polyolefin. It is 1" (25.4mm) wide and .44" (11.2mm) high. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. The sleeve has 2 label(s) per row and 1000 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable.
HESCO Part Number
PANH100X044H2T2
UPC
074983088607
Manufacturer Part Number
H100X044H2T-2
Manufacturer
Panduit
$739.36 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: (1) Material is RoHS compliant (European Union directive 2002/95/EC).(2) AMS-DTL-23053/5C (Class 1 and Class 3) and UL standard 224 with a VW-1 rating.(3) When printed using RMH4BL,RMEH4BL, RHH4BL-S, RMR4BL, RMER4BL, RMR4WH, RHR4BL-S, or RMR2BL thermal transfer ribbons it will also meet SAE-AS5942, MILSTD-883F Method 2015.13, and MIL-STD-202G Method 215K.(4) RoHS Compliant
Packaging Details
| UPC | : | 07498308860 |
| GTIN Package | : | 00074983088607 |
| Standard Package Volume Ft3 | : | 0.1247 |
| Standard Package Weight Pounds | : | 1.4500 |
| Std Package Height In | : | 6.5 |
| Std Package Height MM | : | 165.1 |
| Std Package Length In | : | 6.5 |
| Std Package Length MM | : | 165.1 |
| Std Package Width In | : | 5.1 |
| Std Package Width MM | : | 129.54 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983088607 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Label Property | : | Flammability, Fluid Resistance, Harsh Environments, Military Grade |
| Maximum Operating Temperature (°F) | : | 275 |
| Minimum Operating Temperature (°F) | : | -67 |
| Label Application | : | Cable & Wire Marking |
| Maximum Cable Diameter (In.) | : | 0.25 |
| Number of Labels per Row | : | 2 |
| Minimum Cable Diameter (In.) | : | 0.08 |
| Number of Sides | : | 2 |
| Resistance Properties | : | Military Grade |
| Flammability Rating | : | VW-1 |
| Maximum Operating Temperature (°C) | : | 135 |
| Product Type | : | Heat Shrink Label |
| Minimum Cable Diameter (mm) | : | 2 |
| Printer Type | : | Thermal Transfer |
| Material | : | Polyolefin |
| Overall Width (mm) | : | 25.4 |
| Maximum Cable Diameter (mm) | : | 6.4 |
| Overall Width (In.) | : | 1 |
| Overall Height (In.) | : | 0.44 |
| Color | : | Yellow |
| Note | : | For use with TDP printers |
| Diameter (mm) | : | 6.4 |
| Overall Height (mm) | : | 11.2 |
| Diameter (In.) | : | 0.25 |
| Number of Labels | : | 1000 |
| Minimum Operating Temperature (°C) | : | -55 |
| Label Dimensions (In.) | : | 1W x 0.44H |
| Compatible Wire Gauge | : | 16-10 AWG |
